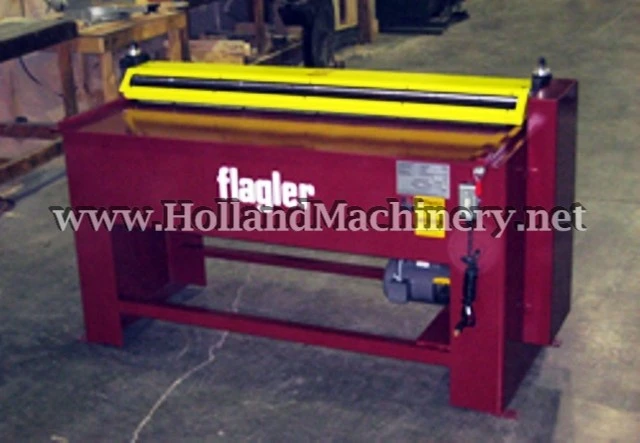

NEW "FLAGLER" SHEET GANG BEADER
CAPACITY 18ga. AND LIGHTER. 60" WIDE
SPEED 60 FPM (APPROX.)
MOTOR 3/4 HP/115/1/60/ 1,800 RPM
DRIVE ROLLER CHAIN
BASE ARC WELDED STEEL
DIMENSIONS 68" L x 30" W
WEIGHT 900 lbs. (APPROX.)
THE FLAGLER SHEET BEADER. THIS UNIT IS DESIGNED FOR FORMING 5 BEADS ON A 60" SHEET AT 12" INCREMENTS PER STANDARDS.
A FULLY ADJUSTABLE FEED GAUGE.
MICROMETER ADJUSTMENTS ON THE MAIN ARBORS FOR FAST POSITIVE ADJUSTMENT.
