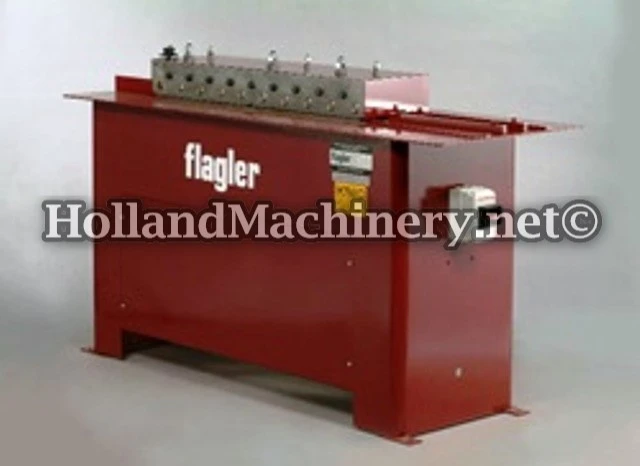

NEW "FLAGLER" HIGH SPEED BUTTON LOCK ROLLFORMER
CAPACITY: 20 to 30 ga. (MILD STEEL)
DEPTH OF POCKET: 1/2" POCKET
SPEED: APPROX. 100 F.P.M.
MOTOR: 5 HP 230/460/3/60/1,800 R.P.M.
DRIVE: DOUBLE MATCHED V BELT
BASE: ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS: 68" LONG, 24" WIDE, 42" HIGH, FEED TABLE 35 1/8"
WEIGHT: 1,000 LBS. (APPROX.)

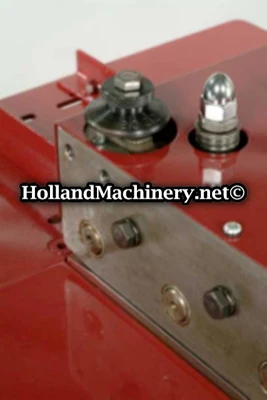

*EXCLUSIVE DIAL ADJ. FOR INSTANT CHANGING FOR ALL GAUGES 20-30
*REPLACEABLE TOOL BITS FOR THE MALE BUTTON LOCK
*SPLIT SHEAR ROLL ASSEMBLY ON MALE BUTTON LOCK CAN BE
RESHARPENED AND FEATURES MULTIPLE KEYWAYS FOR NEW SHEAR POINTS
