| Weight | 1,050 LBS. (APPROX.) | 1,050 LBS. (APPROX.) |

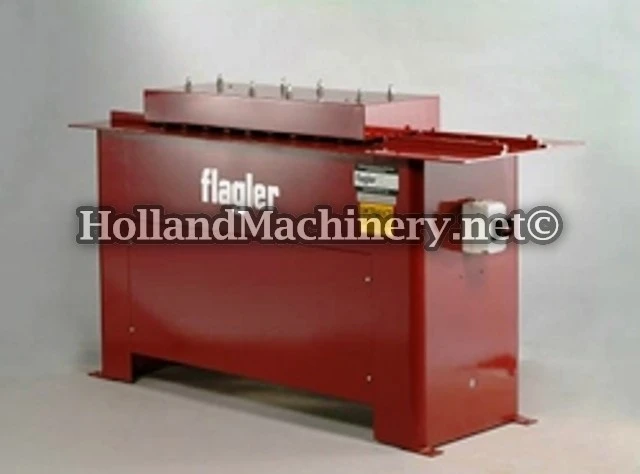

NEW "FLAGLER" DRIVE CLEAT ROLLFORMER
MODEL HSCDC

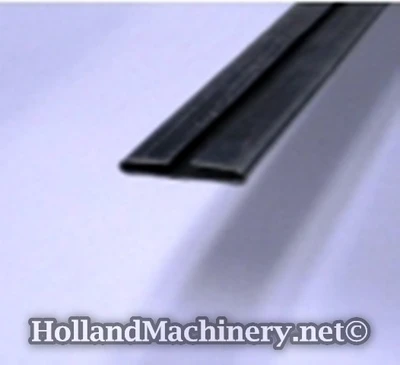

STANDARD WITH 1-1/8" DRIVE CLEAT TOOLING IN THE CENTER POSITION
THERE ARE (2) SETS OF EXTENDED SHAFTS FOR OPTIONAL TOOLING
SPEED 100 F.P.M. (APPROX.)
MOTOR 5 HP/230-460/3/60/ 1,800 RPM
DRIVE DOUBLE MATCHED V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE.
DIMENSIONS 68" x 24" x 48"
WEIGHT 1,050 LBS. (APPROX.)
