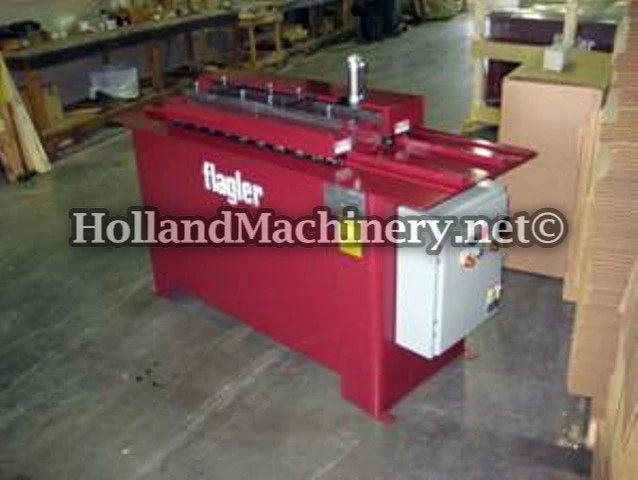

NEW "FLAGLER" DRIVE TURN HEMMER
CAPACITY 20 ga. AND LIGHTER
HEIGHT OF FLANGE 1/2"
SPEED 100 FPM (APPROX.)
MOTOR 5 HP /230/3/60 / 1,800 RPM
100 PSI COMPRESSED AIR @ 3/8" LINE ALSO REQUIRED
DRIVE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 68" L x 24" W
WEIGHT 1,050 LBS. (APPROX.)
MACHINE IS EQUIPPED WITH AN ADDITIONAL SET OF EXTENDED SHAFTS FOR OPTIONAL TOOLING
ROLLFORM YOUR DRIVE TURN HEMS ON THIS MACHINE AFTER
NOTCHING AND PRIOR TO BENDING INTO L OR FULL WRAP SECTIONS.
SIMPLE SELECT THE SECTIONS TO BE HEMMED WITH THE SELECTOR
SWITCH AND RUN THROUGH. THE MACHINE WILL HEM THE 1ST AND
3RD QUADRANTS OR THE 2ND AND 4TH QUADRANTS.
