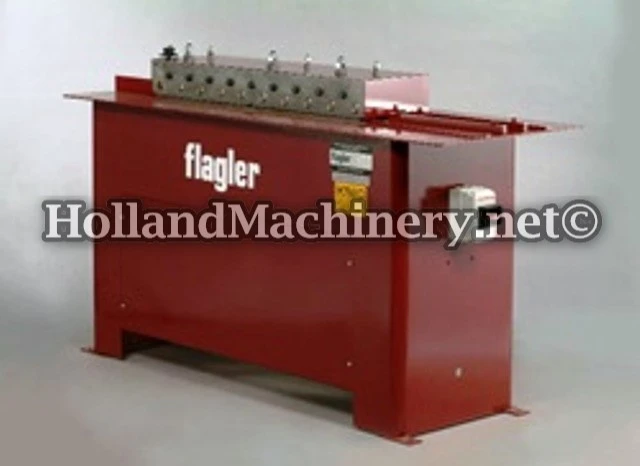

NEW "FLAGLER" HIGH SPEED LIGHT GAUGE BUTTON LOCK ROLLFORMER
CAPACITY: 24 to 28 ga. (MILD STEEL)
DEPTH OF POCKET: 1/2" POCKET
7 STATIONS
SPEED: APPROX. 100 F.P.M.
MOTOR: 3 HP 230/460/3/60/1,800 R.P.M.
DRIVE: DOUBLE MATCHED V BELT
BASE: ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS: 56" LONG, 24" WIDE, 40" HIGH, FEED TABLE 35 1/8"
WEIGHT: 700 LBS. (APPROX.)
