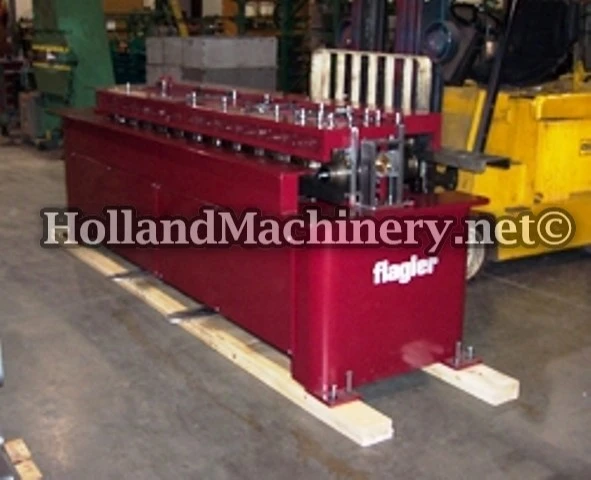

NEW "FLAGLER" ROLLFORMER

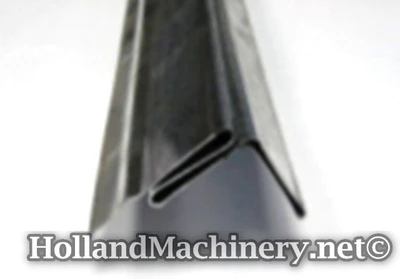

STANDARD WITH 1" STANDING "S" CLEAT ROLLS IN THE CENTER POSITION
THERE ARE (2) SETS OF EXTENDED SHAFTS FOR OPTIONAL TOOLING
SPEED: APPROX. 60 F.P.M. (OPTIONAL 100 F.P.M.)
MOTOR: 7-1/2 HP, 230/460/3/60 1,800 R.P.M.
DRIVE: #60 ROLLER CHAIN
BASE: ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS: 130" LONG, 32" WIDE, 48" HIGH
WEIGHT: 3,500 LBS. (APPROX.)
AUXILIARY TOOLING AVAILABLE:
1-1/2" STANDING SEAM ROLLS (16-20 ga.)
1-1/4" STANDING SEAM ROLLS (18-22 Ga.)
1-1/8" TAP-IN (3 in 1) (18-22 ga.)
1/2" PITTSBURGH ROLLS (16-20 ga.)
3/8" PITTSBURGH ROLLS (18-22 ga.)
5/16" PITTSBURGH ROLLS (20-26 ga.)
OPTIONS LISTED BELOW MUST BE FACTORY INSTALLED:
DUCT FLANGE 1 ROLLS WITH SHORT PARTS FEEDER
VARIABLE DRIVE (0-100 F.P.M.)
