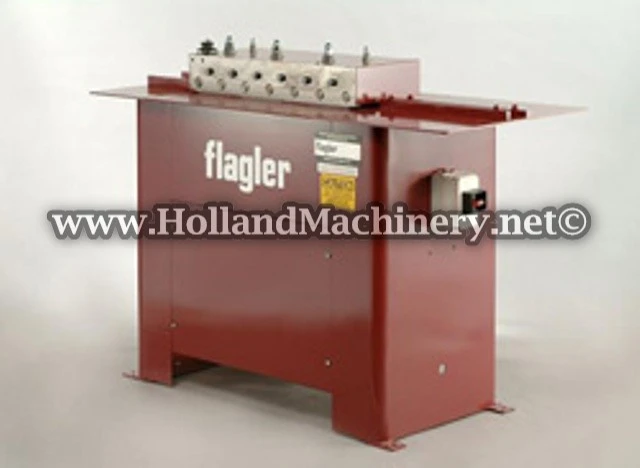

FLAGLER 20 Ga. HIGH SPEED PITTSBURGH HS7

NEW "FLAGLER" 20 Ga. HS7 PITTSBURGH ROLLFORMER
CAPACITY 20-26 Ga. (MILD STEEL)
DEPTH OF POCKET 5/16". PITTSBURGH LOCK ROLLS. USES APPROX. 1" OF MATERIAL
EXTENDED SHAFTS FOR 1 SET OF AUX. TOOLING
SPEED 100 FPM (APPROX.)
7 STATIONS
MOTOR 3 HP /230-460 /3/60/ 1,800 RPM
DRIVE MATCHED DOUBLE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 36" x 16-1/2" x 37"
WEIGHT 450 LBS. (APPROX.)

Auxiliary Tooling Available:
1/2" Double Seam Rolls
3/8" Double Seam Rolls
7/16" Right Angle Flange Rolls
3/4" Standing Seam Rolls
5/16" Pittsburgh Rolls
1/8" Tap-In (3 in 1) Rolls
5/8" End Cap Rolls
1/2" Tap-In (3 in 1) RollS
1-1/8" Drive Cleat Rolls
1-1/8" Drive Cleat Rolls with Slitter
1/2" x 180° Hem Rolls
1/2" Male Button Lock Rolls
THIS MACHINE IS THE SAME AS THE 6 STATION HIGH SPEED WITH THE EXCEPTION OF IT HAS ADDITIONAL STATION FOR MORE AVAILABLE AUXILIARY TOOLING
