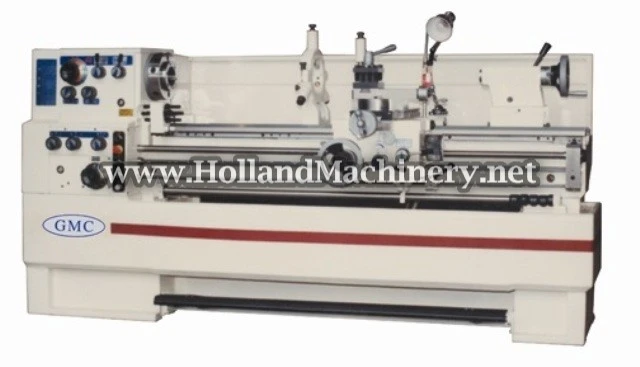

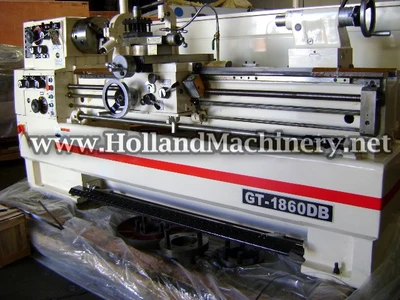

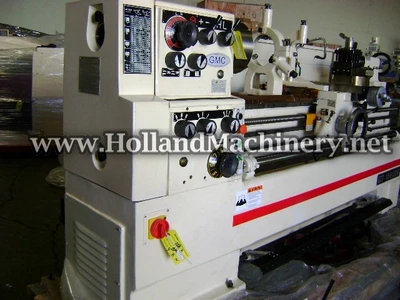

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-1860DB
SWING OVER THE BED 18"
SWING OVER CARRIAGE 11-5/16"
SWING OVER THE GAP 25-3/16"
LENGTH OF THE GAP 10-1/4"
DISTANCE BETWEEN CENTERS 60"
SPINDLE HOLE 3-1/16"
SPEEDS (12) FROM 24 TO 1,600 R.P.M.
INCH AND / METRIC / DIAMETRAL / MODULAR
D1-8 CAMLOCK SPINDLE
METRIC THREADING (41) 0.4mm TO 14mm
INCHES (40) 2 TO 56 TPI
LONGITUDINAL FEED RANGE 0.0012" – 0.0252"
TAILSTOCK TAPER #4 MT
TAILSTOCK QUILL DIAMETER 2-1/8"
TAILSTOCK BARREL TRAVEL 4-3/4"
MAIN MOTOR 7.5 HP/220-440/3/60
COOLANT MOTOR 1/8 HP/220-440/3/60
WEIGHT: 6,000 lbs.(APPROX.)
WITH: 10" CHUCK 3 JAW, 12" CHUCK 4 JAW, STEADY REST,
FOLLOW REST, FACE PLATE, FOOT BRAKE, WORK LIGHT, CARRIAGE STOP,
COOLANT SYSTEM, 4 WAY SQUARE TOOL POST, THREADING DIAL, CENTER,
CHIP PAN, FULL LENGTH SPLASH GUARD
ASK ABOUT OPTIONAL EQUIPMENT FOR HEAVY DUTY LATHES
