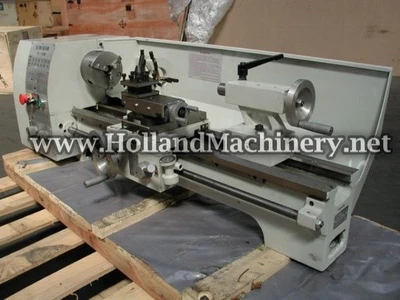

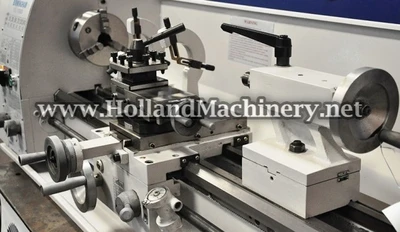

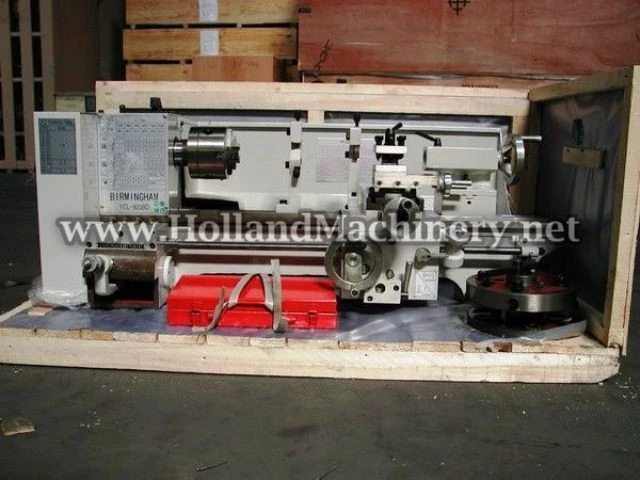

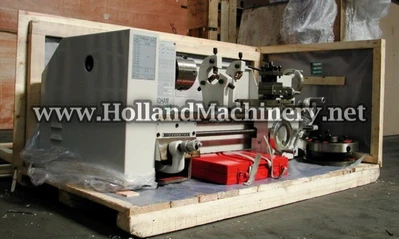

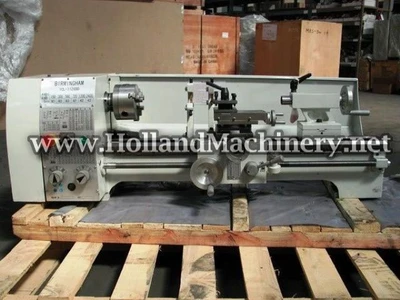

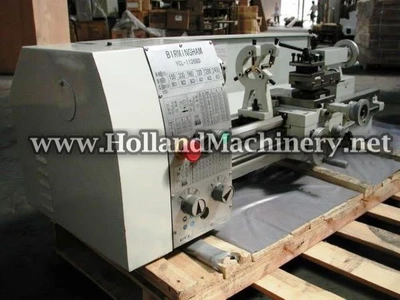

NEW "BIRMINGHAM" BELT DRIVE LATHE
MODEL YCL 1126BD
SWING OVER THE BED 11"
SWING OVER CARRIAGE 6-1/2"
DISTANCE BETWEEN CENTERS 26"
SPINDLE HOLE 1"

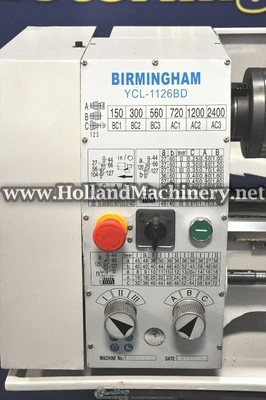

SPEEDS (6) FROM 150 TO 2,400 R.P.M.
INCH / METRIC
METRIC THREADING (11) 0.5mm - 3mm
INCHES (27) 8 TO 56 TPI
LONGITUDINAL FEED RANGE 0.002" - 0.03"
TAILSTOCK TAPER #3 MT
TAILSTOCK QUILL DIAMETER 1-1/4"
TAILSTOCK BARREL TRAVEL 2-1/2"
MOTOR 1 HP/110/1/60
DIMENSION 52" x 28" x 23"
WEIGHT: 400 LBS.
EQUIPPED WITH: 4" 3 JAW CHUCK, STEADY REST, FOLLOW REST, FACE PLATE,
CARRIAGE STOP, 4 WAY SQUARE TOOL POST, THREADING DIAL, CENTER,
FULL LENGTH SPLASH GUARD & MISC.

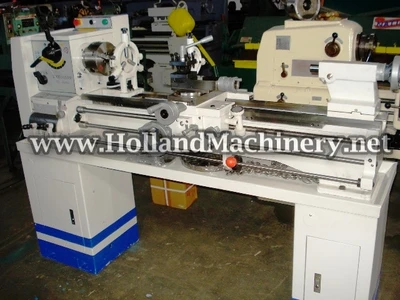

OPTION: FLOOR STAND, HALOGEN WORK LIGHT
