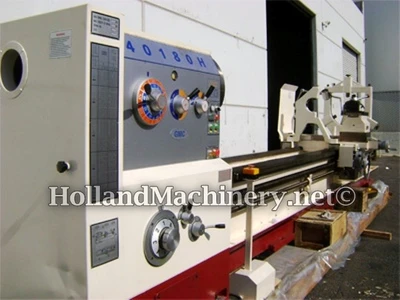

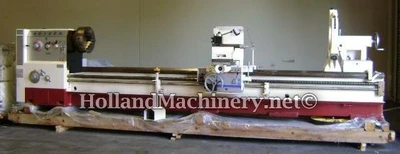

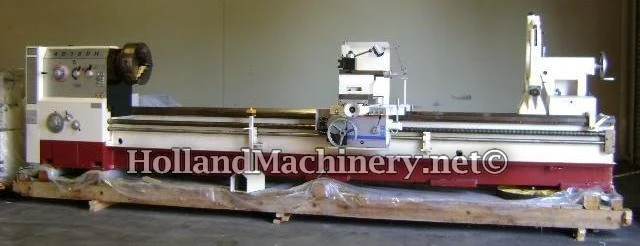

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML-26240H
CAPACITY 26" x 240"
SWING OVER THE BED 26"
SWING OVER THE CARRIAGE 13-3/4"
SWING OVER THE GAP 31-1/2"
LENGTH OF THE GAP 12"
DISTANCE BETWEEN CENTERS 240"
SPINDLE NOSE D1-11 CAMLOCK
SPEEDS (18) 10 TO 800 R.P.M.
SPINDLE HOLE 5-1/8"
INCH / METRIC / DIAMETRAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 10-1/4"
QUILL DIAMETER 3-1/2"
MAIN MOTOR 20 HP/220-440/3/60
RAPID TRAVERSE 2 HP
COOLANT MOTOR 1/8 HP
EQUIPPED WITH: 13" 3 JAW CHUCK, 20" 4 JAW CHUCK,
SQUARE TOOL POST, RAPID TRVERSE, SPLASH GUARD,
31-1/2" FACE PLATE, DRIVE PLATE, CHIP TRAY,
FOOT BRAKE, STEADY REST, FOLLOW REST, THREADING DIAL,
COOLANT PUMP, WORK LIGHT, CENTER AND MISC.
WEIGHT 18,900 LBS. (APPROX.)
