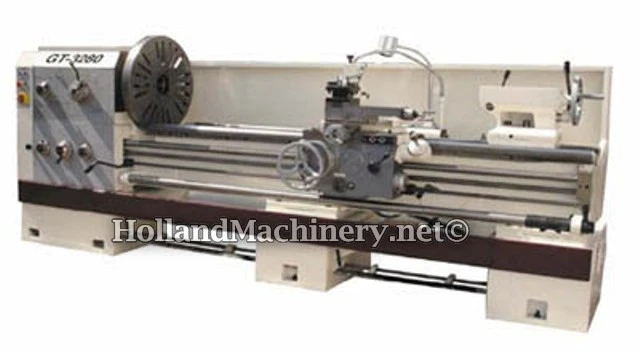

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-3280
CAPACITY 32" x 80"
SWING OVER THE BED 32"
SWING OVER THE CARRIAGE 22-1/2"
SWING OVER THE GAP 39-1/2"
LENGTH OF THE GAP 10"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 30 TO 1,400 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING

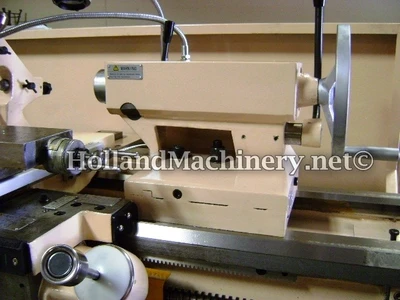

TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 15 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
EQUIPPED WITH: 16" 3 JAW CHUCK,
20" 4 JAW CHUCK, SQUARE TOOL POST,
RAPID TRVERSE, SPLASH GUARD, 25" FACE PLATE,
DRIVE PLATE, CHIP TRAY, FOOT BRAKE,
STEADY REST, FOLLOW REST, THREADING DIAL,
COOLANT PUMP, WORK LIGHT, CENTER AND MISC.
WEIGHT 9,350 LBS. (APPROX.)
