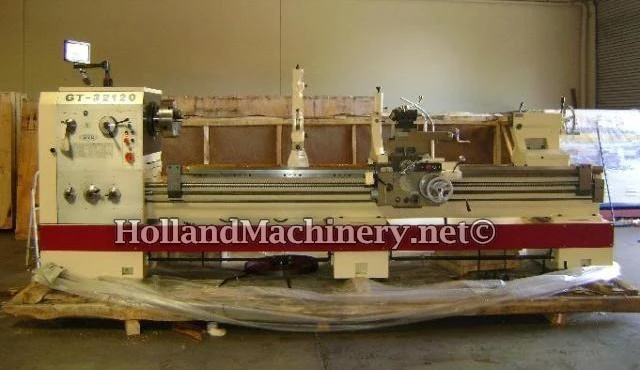

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-32120
CAPACITY 32" x 120"
SWING OVER THE BED 32"
SWING OVER THE CARRIAGE 22-1/2"
SWING OVER THE GAP 39-1/2"
LENGTH OF THE GAP 10"
DISTANCE BETWEEN CENTERS 120"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 30 TO 1,400 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING

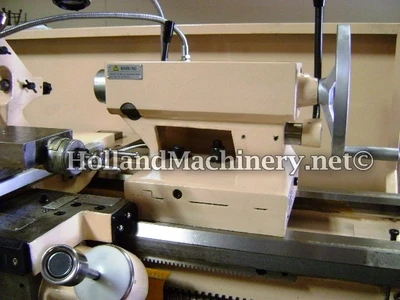

TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 15 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
WEIGHT 10,350 LBS. (APPROX.)
EQUIPPED WITH: 16" CHUCK 3 JAW,
20" CHUCK 4 JAW, SQUARE TOOL POST,
RAPID TRAVERSE, SPLASH GUARD (APRON ONLY),
25" FACE PLATE, DRIVE PLATE, CHIP TRAY,
FOOT BRAKE, STEADY REST, FOLLOW REST,
THREADING DIAL,COOLANT PUMP,WORK LIGHT,CENTER AND MISC.
OPTIONAL EQUIPMENT
-Leveling pad
-DRO for #GT-32120, NEWALL # NW18120, 2 axis, free install
-3/4" - 5" small steady rest with brass tips
-12" to 18-1/8" large steady rest with brass tips
-5-C Hand lever type collet closer # 5C, "JFK" USA, free install
-33 pc 5C collet set, from 1/16 to 1-1/16" by 32ndth
-Taper turning attachment, free installation
-Live center for tailstock MT# 5
-5pc Indexable carbide turning set
-3/8" carbide insert
