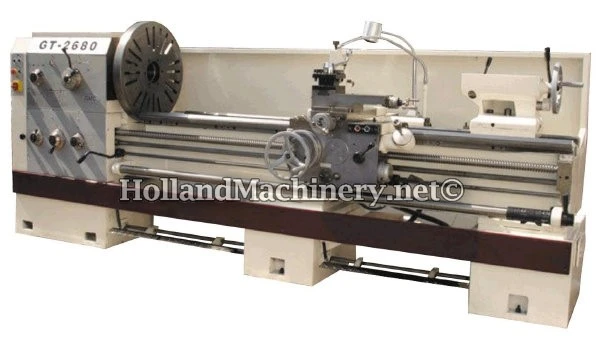

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-2680
CAPACITY 26" x 80"
SWING OVER THE BED 26"
SWING OVER THE CARRIAGE 16-1/2"
SWING OVER THE GAP 34-1/4"
LENGTH OF THE GAP 9"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 36 TO 1,600 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING

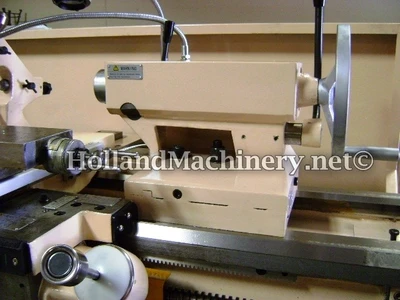

TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 15 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
EQUIPPED WITH: 12" 3 JAW CHUCK,
20" 4 JAW CHUCK, SQUARE TOOL POST,
RAPID TRVERSE, SPLASH GUARD, 24" FACE PLATE,
DRIVE PLATE, CHIP TRAY, FOOT BRAKE, STEADY REST,
FOLLOW REST, THREADING DIAL, COOLANT PUMP,
WORK LIGHT, CENTER AND MISC.
WEIGHT 8,750 LBS. (APPROX.)
FREE TAPER TURNING ATTACHMENT, INSTALLED
LONGITUDINAL KICK-OUT CARRIAGE STOP SYSTEM
OPTIONAL EQUIPMENT
-DRO for #GT-2680, NEWALL (England), 2 axis, free install
-SINO DRO for GT-2680, resolution .0001", free install
-Leveling pad
-10"-16" large steady rest with brass tips
-5-C Hand lever type collet closer, "JFK" USA, free install
-33 pc 5C collet set, from 1/16 to 1-1/16" by 32ndth
-Taper turning attachment, free installation
-Live center for tailstock MT# 5
-5pc Indexable carbide turning set
-3/8" carbide insert
