| Weight | 8,350 LBS. (APPROX.) | 8,350 LBS. (APPROX.) |

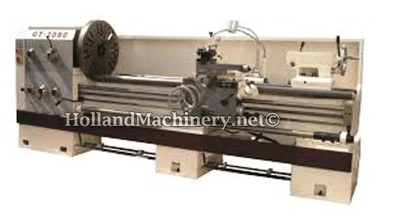

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-2080
CAPACITY 20" x 80"
SWING OVER THE BED 20"
SWING OVER THE CARRIAGE 12"
SWING OVER THE GAP 28"
LENGTH OF THE GAP 9"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8" CAMLOCK
SPEEDS (12) 36 TO 1600 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 10 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
WEIGHT 8,350 LBS. (APPROX.)
EQUIPPED WITH: 3 & 4 JAW CHUCK,
SQUARE TOOL POST, RAPID TRVERSE,
SPLASH GUARD, FACE PLATE, DRIVE PLATE,
CHIP TRAY, FOOT BRAKE, STEADY REST,
FOLLOW REST, THREADING DIAL, COOLANT PUMP,
WORK LIGHT, CENTER AND MISC.
OPTIONAL EQUIPMENT
-3/4" - 5" steady rest with brass tips
-Leveling pad
-DRO for #GT-2080, NEWALL (England), 2 axis, free install
-SINO DRO for GT-2080 lathe, 0.0001" res., free install
-5-C Hand lever type collet closer, "JFK" USA, free install
-33 pc 5C collet set, from 1/16 to 1-1/16" by 32ndth
-Taper turning attachment, free installation
-6pc Aloris type quick change tool post
-Live center for tailstock MT# 5
-5pc Indexable carbide turning set
-3/8" carbide insert # 2003-0014
