| Weight | 8,100 LBS. (APPROX.) | 8,100 LBS. (APPROX.) |

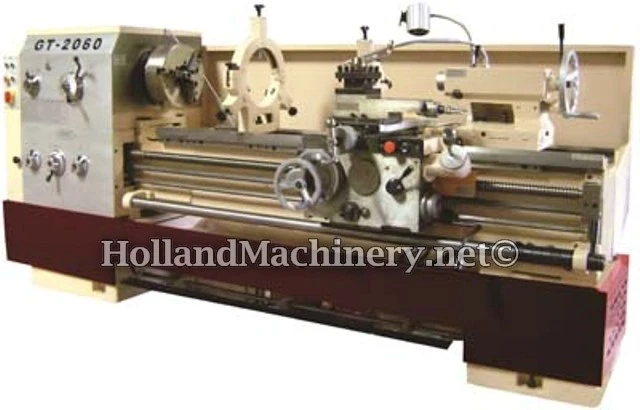

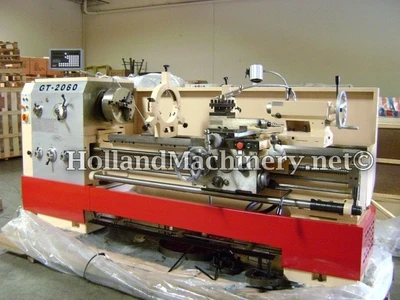

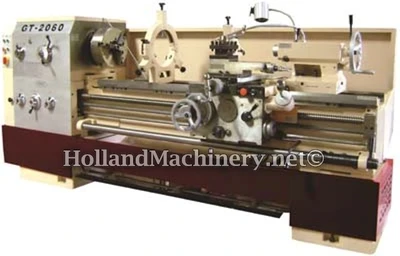

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-2060
CAPACITY 20" x 60"
SWING OVER THE BED 20"
SWING OVER THE CARRIAGE 12"
SWING OVER THE GAP 28"
LENGTH OF THE GAP 9"
DISTANCE BETWEEN CENTERS 60"
SPINDLE NOSE D1-8" CAMLOCK
SPEEDS (12) 36 TO 1600 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING

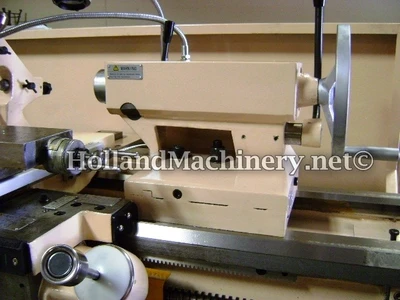

TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 10 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
WEIGHT 8,100 LBS. (APPROX.)
EQUIPPED WITH: 3 & 4 JAW CHUCK,
SQUARE TOOL POST, RAPID TRVERSE,
SPLASH GUARD, FACE PLATE, DRIVE PLATE,

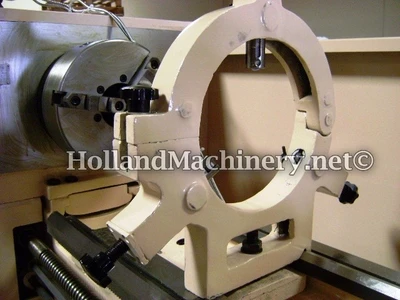

CHIP TRAY, FOOT BRAKE, STEADY REST,
FOLLOW REST, THREADING DIAL, COOLANT PUMP,
WORK LIGHT, CENTER AND MISC.
OPTIONAL EQUIPMENT AVAILABLE
