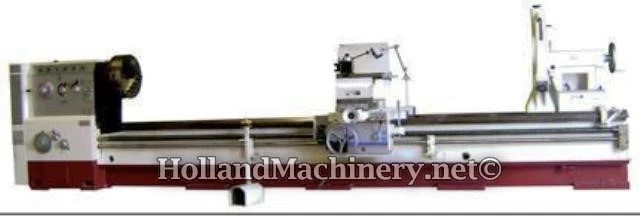

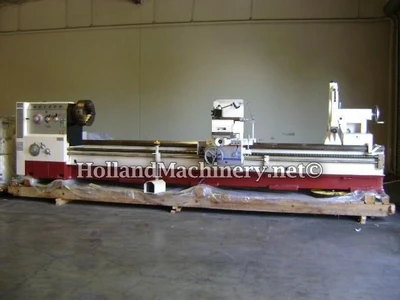

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML 56180H
CAPACITY 56-5/16" x 180"
SWING OVER THE BED 56-5/16"
SWING OVER THE CARRIAGE 43-5/16"
SWING OVER THE GAP 63"
LENGTH OF THE GAP 15"
DISTANCE BETWEEN CENTERS 180"
SPINDLE NOSE D1-11 CAMLOCK
SPEEDS (18) 7 TO 576 R.P.M.
SPINDLE HOLE 5-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING
TAILSTOCK: TAPER MORSE #6
QUILL TRAVEL 10-5/8"
QUILL DIAMETER 4-3/4"
MAIN MOTOR 20 HP/220-440/3/60
RAPID TRAVERSE 2 HP
COOLANT MOTOR 1/8 HP
EQUIPPED WITH: 20" 3 JAW CHUCK,
25" 4 JAW CHUCK, SQUARE TOOL POST,
RAPID TRVERSE, SPLASH GUARD, 39-1/4" FACE PLATE,
DRIVE PLATE, CHIP TRAY, FOOT BRAKE, 27" STEADY REST,
FOLLOW REST, THREADING DIAL, COOLANT PUMP,
WORK LIGHT, CENTER AND MISC.
