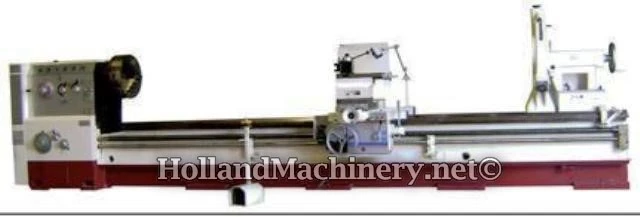

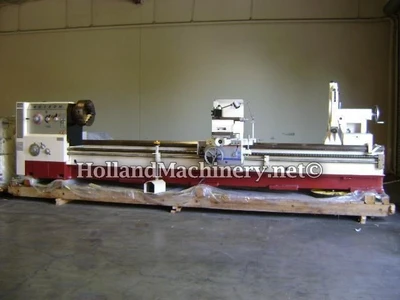

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML 40240HLB6
CAPACITY 40-9/16" x 240"
SWING OVER THE BED 40-9/16"
SWING OVER THE CARRIAGE 27-9/16"
SWING OVER THE GAP 47-1/4"
LENGTH OF THE GAP 15"
DISTANCE BETWEEN CENTERS 240"
SPINDLE NOSE D1-11 CAMLOCK
SPEEDS (18) 9 TO 691 R.P.M.
SPINDLE HOLE 6-1/4"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING
TAILSTOCK: TAPER MORSE #6
QUILL TRAVEL 10-5/8"
QUILL DIAMETER 4-3/4"
MAIN MOTOR 20 HP/220-440/3/60
RAPID TRAVERSE 2 HP
COOLANT MOTOR 1/8 HP
EQUIPPED WITH: 20" 3 JAW CHUCK, 25" 4 JAW CHUCK,
SQUARE TOOL POST, RAPID TRVERSE, SPLASH GUARD,
31-1/4" FACE PLATE, DRIVE PLATE, CHIP TRAY,
FOOT BRAKE, 20" STEADY REST, FOLLOW REST,
THREADING DIAL, COOLANT PUMP, WORK LIGHT, CENTER AND MISC.
WEIGHT 21,500 LBS. (APPROX.)
