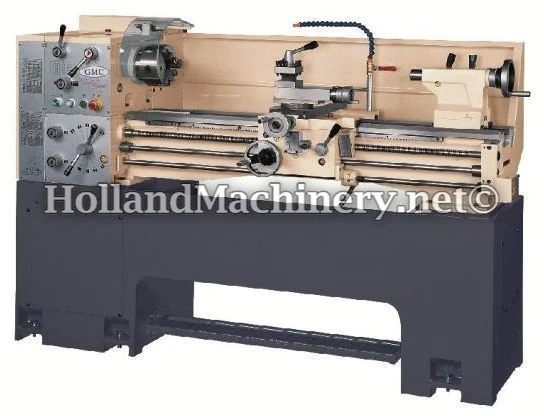

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML-1440ET
SWING OVER THE BED 14"
SWING OVER CARRIAGE 8-3/4"
SWING OVER THE GAP 20-3/4"
LENGTH OF THE GAP 9"
DISTANCE BETWEEN CENTERS 40"
SPINDLE HOLE 1-1/2"
SPEEDS (9) FROM 82 TO 2000 R.P.M.
INCH AND /METRIC /DIAMETRAL /MODULAR
D1-4 CAMLOCK SPIDLE
METRIC THREADING (30) 0.4mm TO 7mm
INCHES (32) 3 TO 56 TPI
LONGITUDINAL FEED RANGE 0.0016" - 0.03"
TAILSTOCK TAPER #3 MT
TAILSTOCK QUILL DIAMETER 1-9/16"
TAILSTOCK BARREL TRAVEL 4-3/8"
MOTOR 3 HP/220-440/3/60
EQUIPPED WITH: 6†3 JAW CHUCK, 8" 4 JAW CHUCK,
STEADY REST, FOLLOW REST, FACE PLATE, FOOT BRAKE,
WORK LIGHT, CARRIAGE STOP, COOLANT SYSTEM,
4 WAY SQUARE TOOL POST, FOLLOW REST, THREADING DIAL,
CENTER, CHIP PAN, FULL LENGTH SPLASH GUARD & MISC.
WEIGHT: 1,650 lbs.
DIMENSIONS 73" x 31" x 58"
