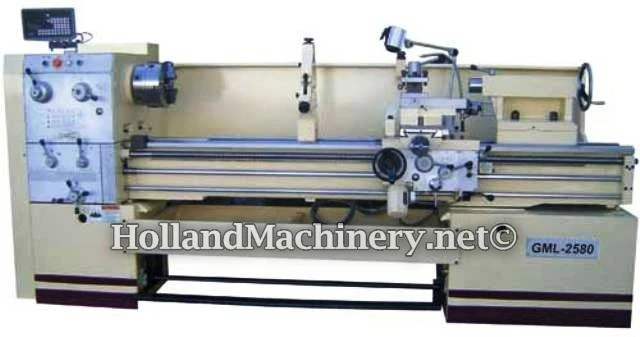

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML-2580
CAPACITY 25" x 80"
SWING OVER THE BED 25"
SWING OVER THE CARRIAGE 14"
SWING OVER THE GAP 29"
LENGTH OF THE GAP 8"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (15) 26 TO 1,800 R.P.M.
SPINDLE HOLE 3 -1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 5"
QUILL DIAMETER 2-1/2"
MAIN MOTOR 15 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
WEIGHT 7,650 LBS. (APPROX.)
EQUIPPED WITH: 12" 3 JAW CHUCK, 12" 4 JAW CHUCK,
SQUARE TOOL POST, RAPID TRVERSE, SPLASH GUARD, 17"
FACE PLATE, DRIVE PLATE, CHIP TRAY, FOOT BRAKE, 4-1/4"
STEADY REST, FOLLOW REST, THREADING DIAL, COOLANT PUMP,
WORK LIGHT, CENTER AND MISC.
