NEW UNIHYDRO 135-24 CAPACITY 135 TONS

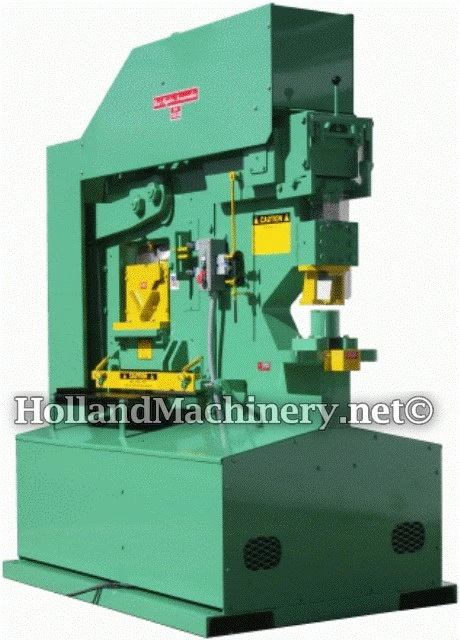

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 4 STATIONS
DUAL CYLINDER/DUAL OPERATOR
MODEL 135-24 CAPACITY 135 TONS
STROKES PER MINUTE 8 (MAX. CAPACITY)
THROAT DEPTH 12"
CAPACITY (MILD STEEL):
PUNCHING 4" THRU 3/8" (WITH OPTIONAL TOOL SET)
1-1/2" THRU 1"
FLAT PLATE 24" x 1/2"
20" x 5/8", 12" x 1"

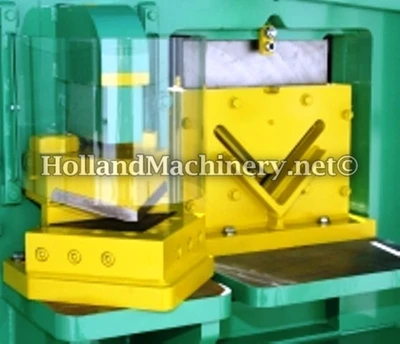

CHOICE OF SQUARE, V NOTCHER OR PIPE NOTCHER
MOTOR 7.5 HP/220-440/3/60
MOTOR 7.5 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 28 GALLONS
WEIGHT 7,250 LBS. (APPROX)
EQUIPPED WITH: FLAT BAR SHEAR TABLE,
MAGNETIC STARTER & GREASE BANK
OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 6" x 6" x 1/2" @ 90°
ANGLES 4" x 4" x 3/8" @ 45°
CHANNEL SHEAR 2", 3", 4", 5", 6", 7" OR 8"
SOLID ROUND 1-1/4"
SOLID SQUARE 1-1/4"
NOTCHER 90° 4" x 4" x 5/16"
4" x 4" x 1/2" (POWER CAVITY)
COPER 3" x 3" x 5/16"
3" x 3" x 3/8" (POWER CAVITY)
PIPE NOTCHER
BRAKE
