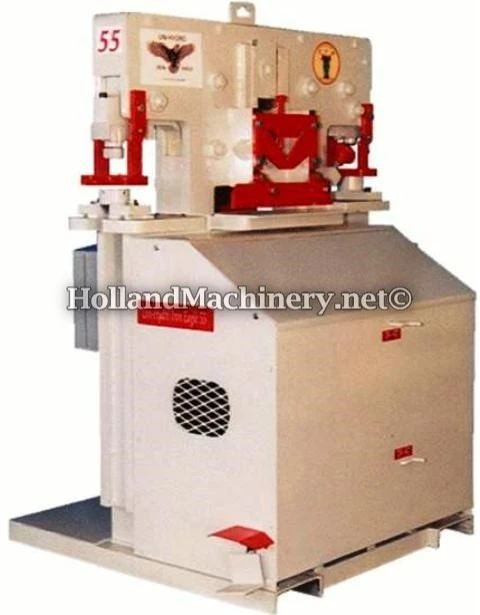

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 4 STATIONS
MODEL 55-14 IRON EAGLE
CAPACITY 55 TONS
STROKES PER MINUTE 8 (MAX. CAPACITY)
THROAT DEPTH 7-3/4"
CAPACITY (MILD STEEL):
PUNCHING 1-3/8" THRU 1/2"
7/8" THRU 3/4"
FLAT PLATE 14" x 1/2"
4" x 3/4"
ANGLES 4" x 4" x 3/8" @ 90°
MOTOR 5 HP/220-440/3/60
MOTOR 5 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 20 QUARTS
WEIGHT 1,500 LBS. (APPROX)
EQUIPPED WITH: MAGNETIC STARTER
OPTIONAL CAPACITY WITH ACCESSORIES:
CHANNEL SHEAR 1", 2" OR 3"
SOLID ROUND 1"
SOLID SQUARE 1"
NOTCHER 90° 3" x 3" x 3/8"
COPER 1-3/4" x 2" x 3/8"
PIPE NOTCHER 1/2" TO 2"
BRAKE 10" x 1/4"
OPTIONAL TOOLING AVAILABLE
