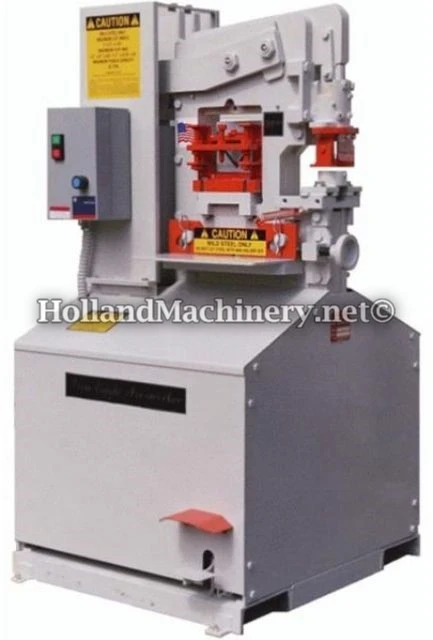

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 3 STATIONS
MODEL 30-8 IRON EAGLE CAPACITY 30 TONS
STROKES PER MINUTE 9 (MAX. CAPACITY)
THROAT DEPTH 4-1/2"
CAPACITY (MILD STEEL):
PUNCHING 3/4" THRU 1/2"
1-1/4" THRU 5/16"
FLAT PLATE 8" x 1/4" , 6" x 1/2"
MOTOR 3 HP/220-440/3/60
MOTOR 3 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 15 QUARTS
EQUIPPED WITH: MAGNETIC STARTER
WEIGHT 900 LBS. (APPROX)
OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 3" x 3" x 1/4" @ 90°
ANGLES 2" x 2" x 1/4" @ 45°
CHANNEL SHEAR 1" OR 2"
SOLID ROUND 5/8", SOLID SQUARE 5/8"
COPER/NOTCHER 90° 3" x 3" x 1/4"
PIPE NOTCHER 1/2" TO 2", BRAKE 6" x 1/4"
OPTIONAL TOOLING AVAILABLE
