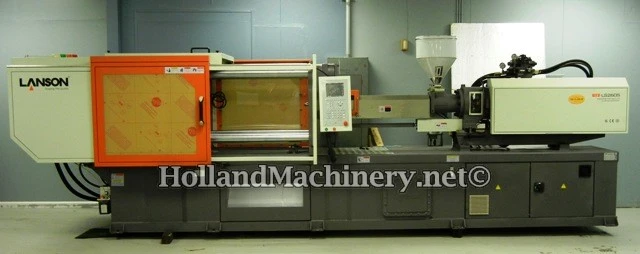

NEW LANSON GT2-260S

NEW "LANSON" PLASTIC INJECTION MOLDER
MODEL GT2-260S
SCREW DIA. 55mm, 60mm, 65mm
CAPACITY 20.2oz, 24.1oz, 28.2oz
PLASTICIZING CAP 297, 376.2, 503.8 lb/Hr
PLATEN SIZE: 34.45" x 34.45" (875mm x 875mm)
DISTANCE BETWEEN BARS 22.83" x 22.83" (580mm x 580mm)
CLAMP STROKE: 20.67" (525mm)
MAX. DAYLIGHT 45.47" (1155mm)
MIN. HEIGHT: 9.84" (250mm)
MAX. HEIGHT: 24.8" (630mm)
MOTOR 20.4 Kw/460/3/60
TONNAGE 260 TON
HYDRAULIC EJECTION FORCE 67kN
EJECTION STROKE 160mm
# OF EJECTORS 12 + 1
TECH1_Q8M CONTROLLER
