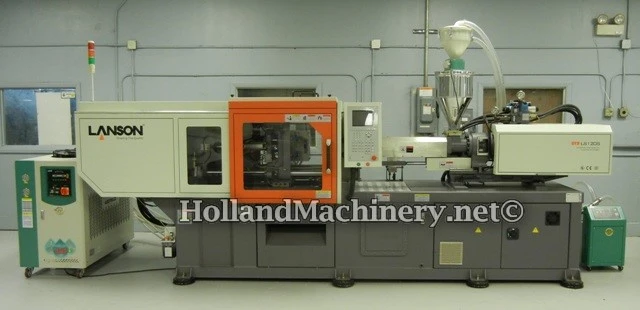

NEW LANSON GT2-120S

NEW "LANSON" PLASTIC INJECTION MOLDER
MODEL GT2-120S
SCREW DIA.----- 35mm, 38mm, 42mm
CAPACITY -------5.3oz, 6.2oz, 7.6oz
PLASTICIZING CAP ---- 98.3, 143.2, 161.7 lb/Hr
PLATEN SIZE: 24.41" x 24.41" (620mm x 620mm)
DISTANCE BETWEEN BARS 16.14" x 16.14" (410mm x 410mm)
CLAMP STROKE: 16.14" (410mm)
MAX. DAYLIGHT 33.66" (855mm)
MIN. HEIGHT: 7.28" (185mm)
MAX. HEIGHT: 17.52" (445mm)
MOTOR 13.2 Kw/460/3/60
TONNAGE 120 TON
HYDRAULIC EJECTION FORCE 42kN
EJECTION STROKE 100mm
# OF EJECTORS 4 + 1
TECH1_Q8M CONTROLLER
