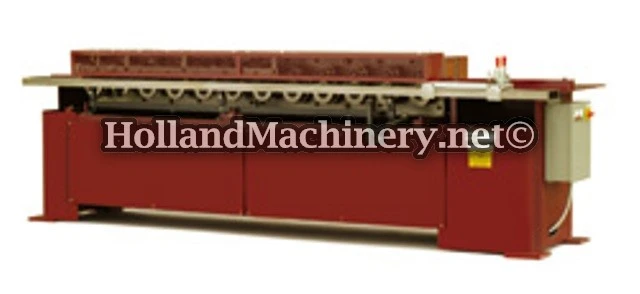

FLAGLER 18-26ga DUCT FLANGE

NEW "FLAGLER" DUCT FLANGE MACHINE
SPEED 60 FPM (OPTIONAL UP TO 100 F.P.M.)
GAUGE CAPACITY 18-26 GAUGE GALVANIZED
12 STATIONS - DF1
14 STATIONS - D2
1-1/2" DIAM. (AT BEARING) HARDENED AND GROUND SPINDLES
HARDENED FEED GAUGE
RISE/FALL SHORT PARTS FEEDER
MOTOR 7-1/2 HP/230/3/60
LUBRICATION POINTS AT ALL BEARINGS
EXTENDED SHAFTS FOR AUXILIARY TOOLING
DIMENSIONS 128" x 32" x 40"
WEIGHT 3,500 LBS (APPROX.)

OPTIONAL TOOLING INCLUDED BUT NOT LIMITED TO:
CLIP ROLLS (20-26ga)
1-1/2" STANDING SEAM ROLLS (16-20ga)
1-1/4" STANDING SEAM ROLLS (18-22ga)
1-1/8" TAP-IN (3 in 1) (18-22ga)
1/2" PITTSBURGH ROLLS (16-20ga)
3/8" PITTSBURGH ROLLS (18-22ga)
5/16" PITTSBURGH ROLLS (20-26ga)

OPTIONS LISTED BELOW MUST BE FACTORY INSTALLED:
1" STANDING "S" CLEAT, ROLLS INBOARD (22-28ga)
2" x 2" ANGLE, INBOARD (16-20ga)
VARIABLE DRIVE (0-100 FPM)
SHORT PARTS FEEDER FOR AUX. ROLLS
