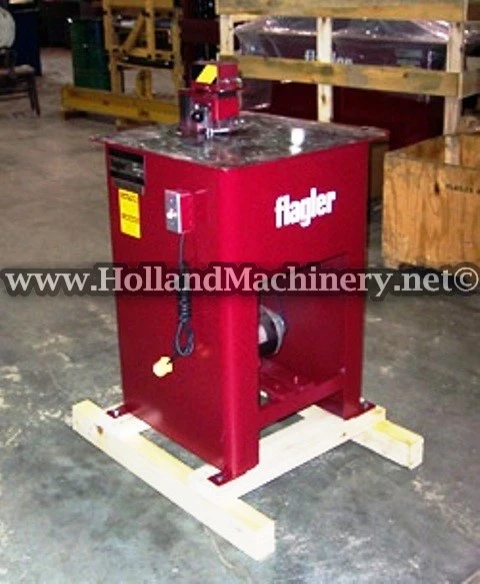

NEW "FLAGLER" 20 BUTTON PUNCH FLANGER
CAPACITY 20-26 Ga. (MILD STEEL)
HEIGHT OF FLANGE 3/8" HIGH
SPEED 18 FPM (APPROX.)
MOTOR 3/4 HP/115/1/60/ 1,800 R.P.M.
DRIVE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 24" x 24" x 38-5/8". FEED TABLE HEIGHT 34-5/8"
WEIGHT 250 LBS (APPROX.)
FOR MANUFACTURING FITTINGS USING THE BUTTON LOCK SEAM RATHER THAN PITTSBURGH 2 STEP OPERATION,
FIRST THE FLANGE IS FORMED THEN THE BUTTONS ARE PUNCHED.
THIS MACHINE IS BUILT WITH A HEAVY DUTY CAST IRON GEAR HOUSING WITH OIL BATH AND COMPLETE WITH FLANGE FOLLOWER.
