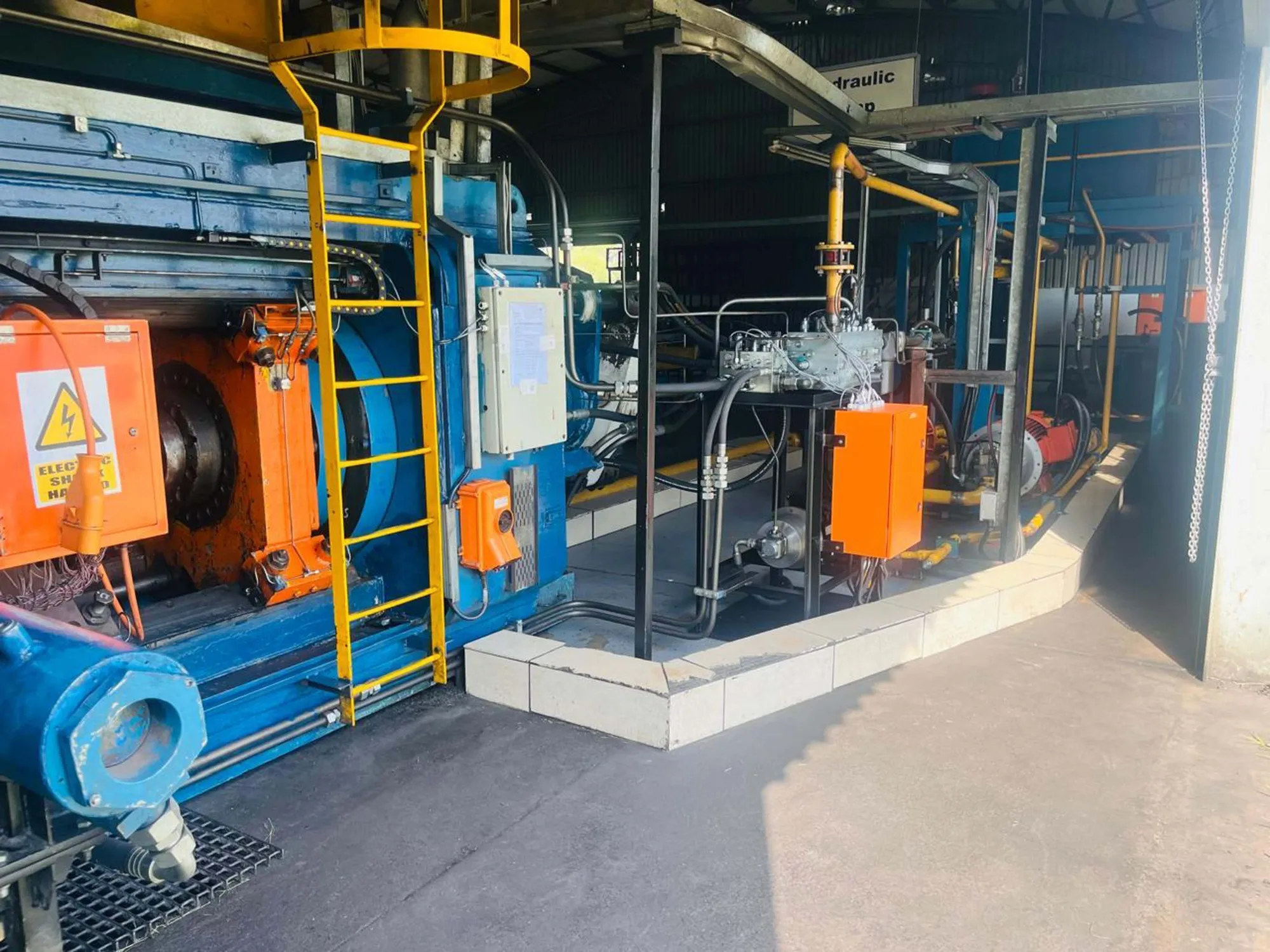

USED FIELDING & PLATT 850 TON EXTRUSION PRESS (14648)

850 TON ALUMINUM EXTRUSION PRESS
Stock # 14648
OEM:.............................Fielding & Platt
Extrusion Press Tonnage:.........850 Tons
Billet Length:...................500mm
(Max Billet length governed by the Induction Heater: 500mm)
Container Diameter:..............136mm
Diameter of Main Cylinder:.......610mm
Diameter of Small Cylinder:......160mm
Platten Exit Diameter:...........163mm
Maximum Pressure of Press(Bar):..310 Bar
Marks of Billets:................6063/6060
Runout Table Length
Conveyor Length:..............37800mm
Billet Heating:..................Combination of LPG Gas
& Induction Heating
Type of Puller:..................Single Puller With Fingers,
That Runs On A Guide Rail, Directly
Above The Runout Table, Chain Driven

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
