Ozone Generator 333 Lbs/Day
Overview
Description
### ABB Ozone Generator System Type OF 209 L - Quantity (3) available ###

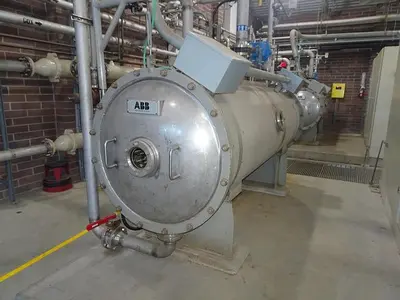

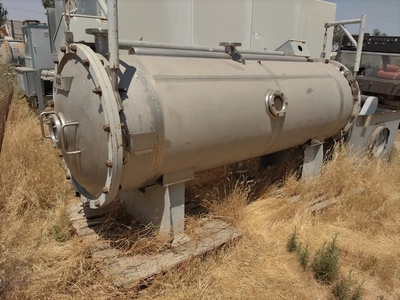

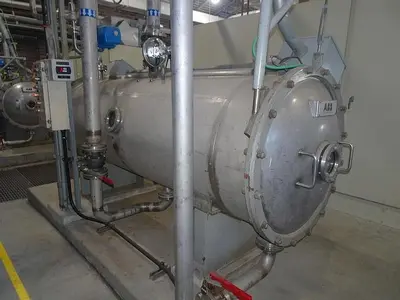

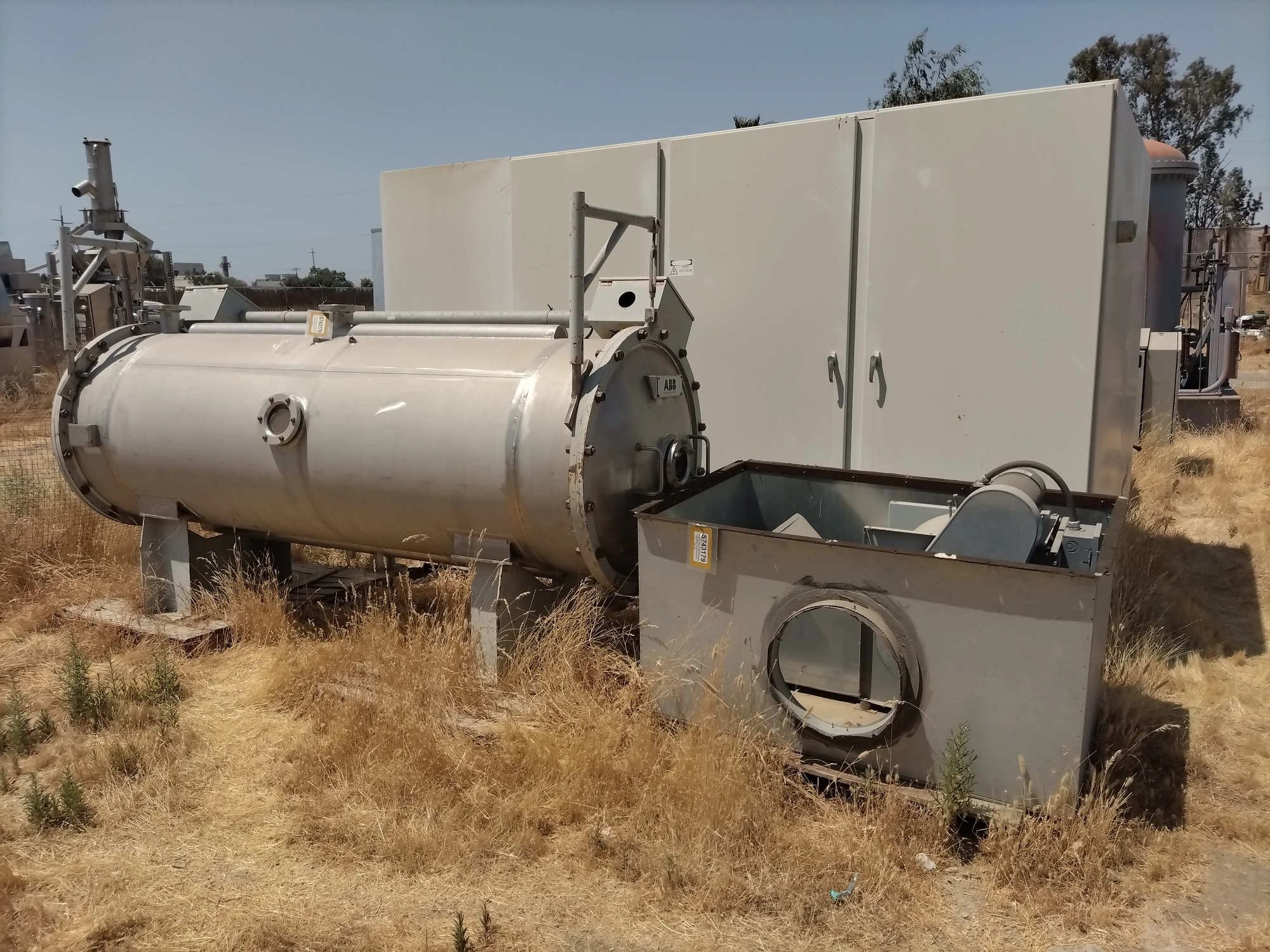

Stainless steel Ozone Generator Vessel (OGV) and Power Supply Unit (PSU).
**Performance**
- Rated for 333 pounds per day ozone.
- 17 psi ozone gas pressure.
- 13,320 pounds per day corresponding mass flow.
- 84 gallons per minute flow.
- 8.5 kWh per pound power consumption.
** Features **:

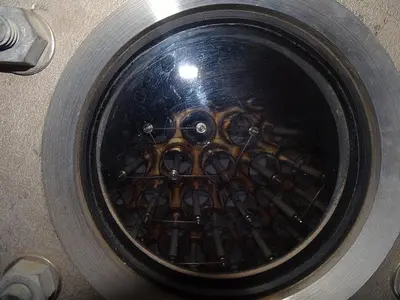

- OGV: Flanged dished ends with ozone-resistant gaskets, stainless steel (earth) electrodes, and metallized glass (high voltage) electrodes.

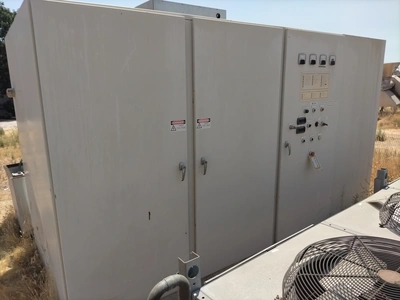

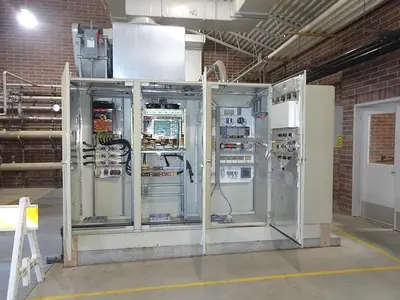

- PSU: Main switch, main breaker, current rectifier controller, DC-choke, current inverter, high voltage transformer, and Programmable Logic Control (PLC) system.
PSU can be controlled manually or by remote set point. System in good working condition when removed from service
3 Units Available - Priced Separately
Specifications
Quantity: 3
Capacity: 333 #/day
Width/Dia: 32 Inches
Length: 122 Inches
Height: 58 Inches
Weight: 3,600 Pounds
