USED 2006 MEMTEK EFC 3600

**Memtek EFC 3600 tubular microfiltration system by Siemens**

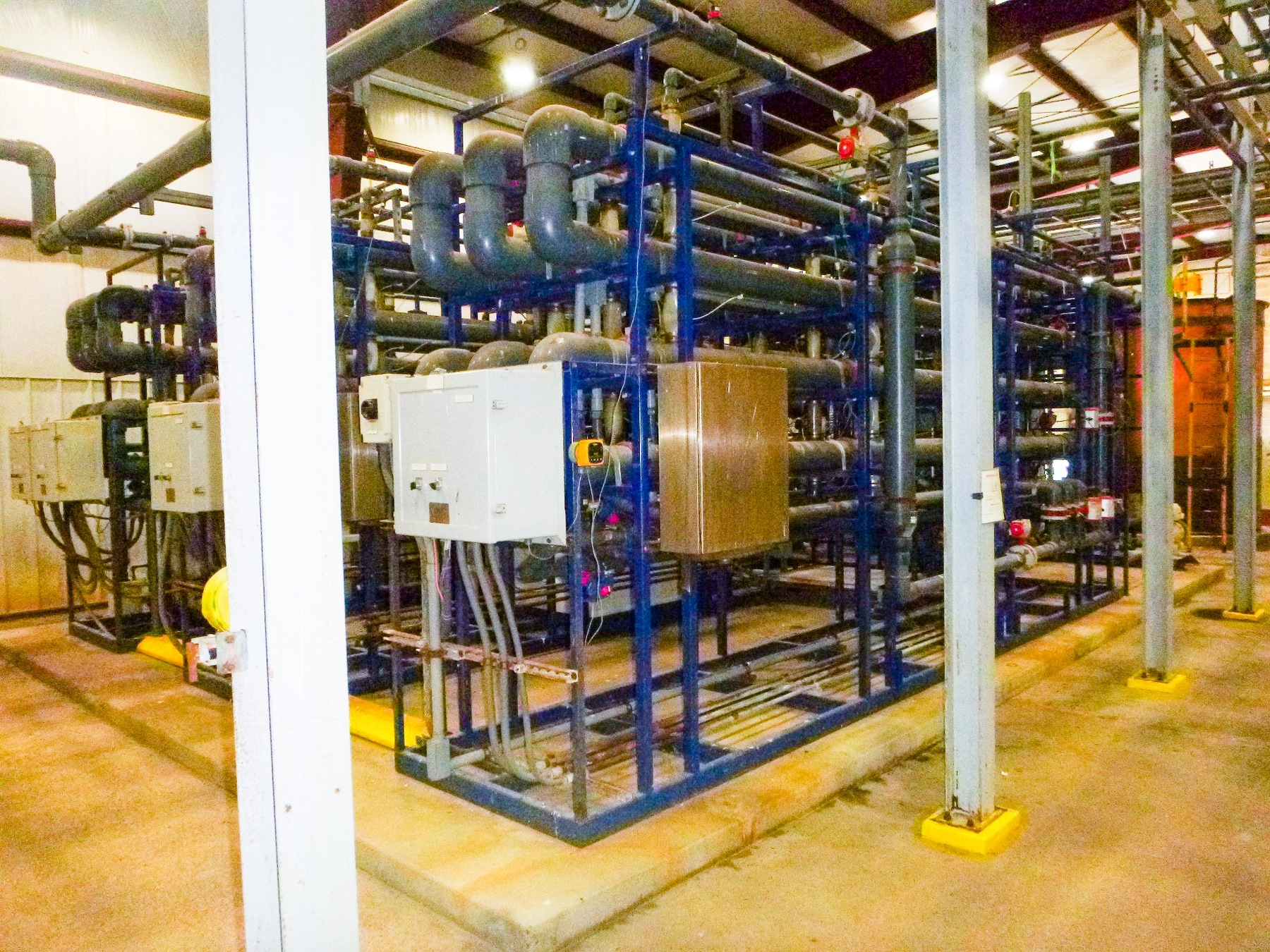

- (3) microfiltration skidded modules in this set as shown.

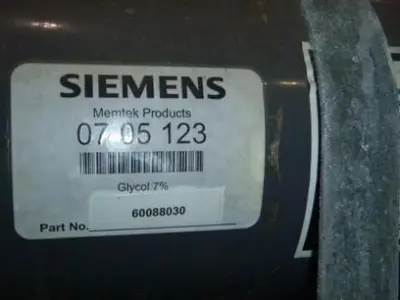

- Crossflow tubular membranes pvc

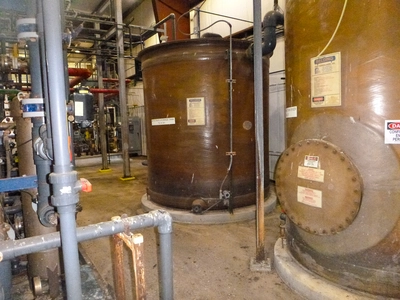

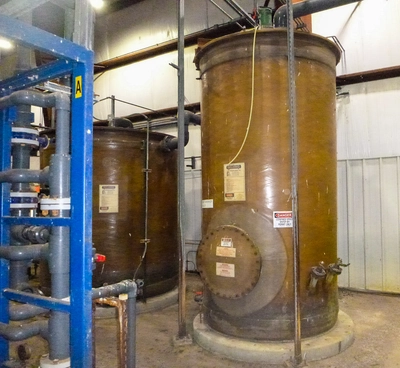

- Concentration FRP tank 8 ft dia x 9 ft tall (3300 gallon capacity).
- Mix Tank, FRP with top entering agitator
- Circulation pump is centrifugal 50 HP 460/3/60 rated at 1060 gpm.
- Overall footprint of system is approx 43 feet x 25 feet wide x 12 feet tall. Each skid is 33 ft x 8 ft x 12 ft tall.

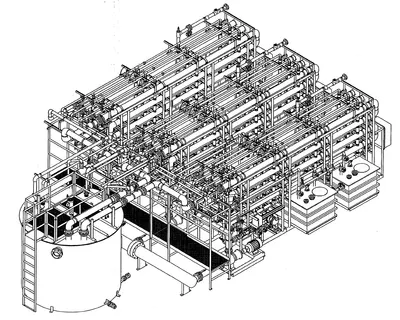

The basic EFC system is a skid-mounted package consisting of membrane modules, recirculation pump, in-place cleaning loop, backpulse mechanism, instrumentation and controls. The rugged fluorocarbon membranes are non-plugging, abrasion and chlorine resistant. The skid-mounted design is compact and requires minimal floor space. The Memtek® E-Series systems incorporates proprietary crossflow tubular membranes which remove precipitated contaminants and produce a high quality filtrate suitable for discharge or further treatment.

Please note the price incudes removal and loading - contractor quote is budgetary until scope clearly defined. Price may vary based on scope. We can also deliver to you.

Quantity: 1
Capacity: 1,050 gpm
Width/Dia: 43 Feet
Length: 25 Feet
Height: 12 Feet
Weight: 15,000 Pounds
Size: 43' x 25' x 12' tall
Motor HP: 50
