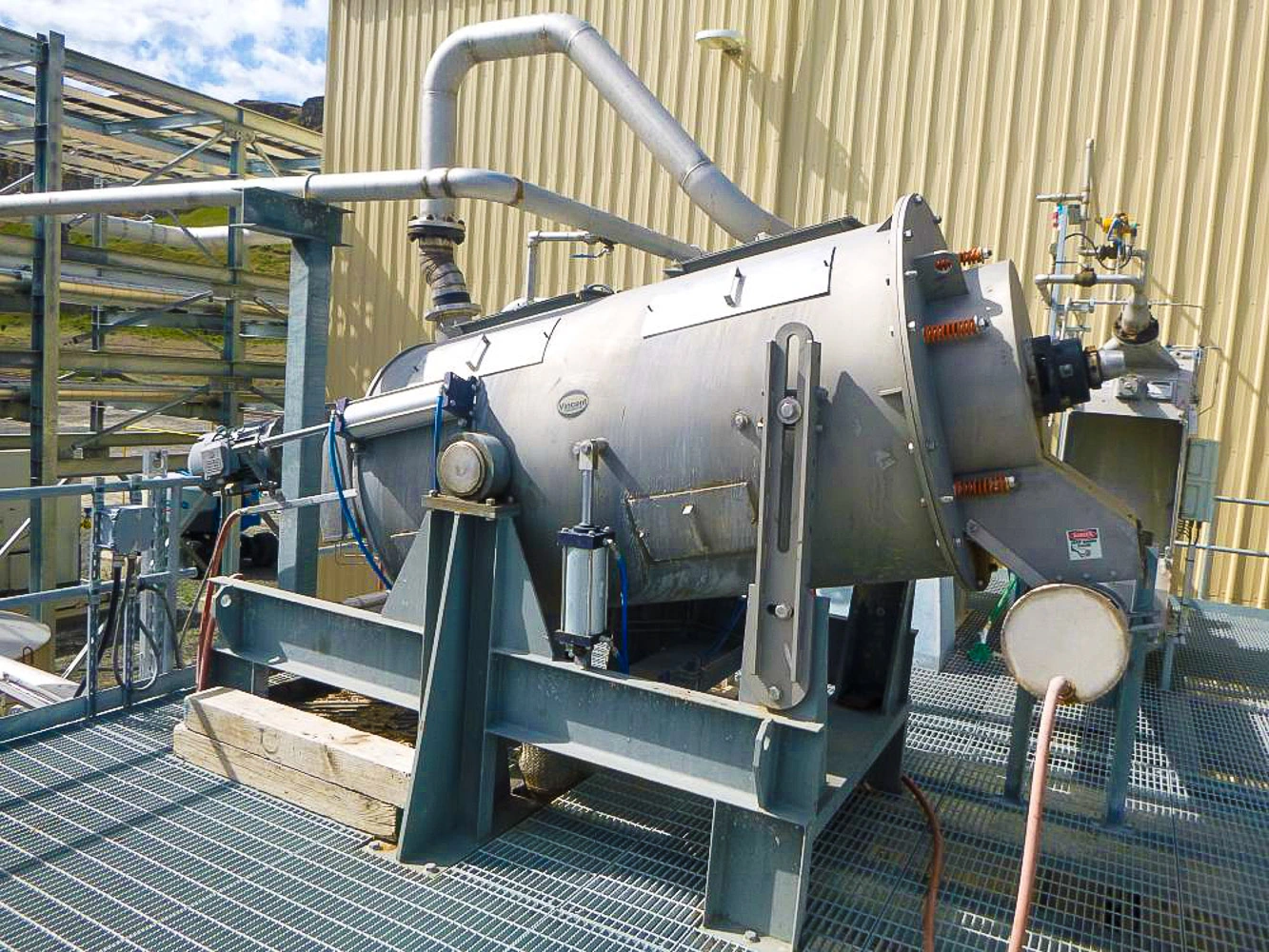

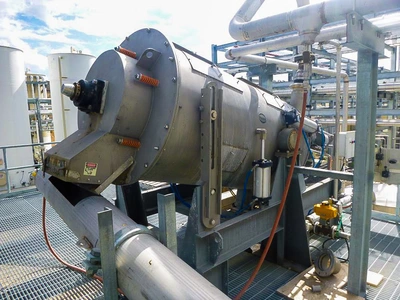

USED 2019 VINCENT EF-30

### Vincent Fiber Filter Sludge Press 300-1500 gpm ###

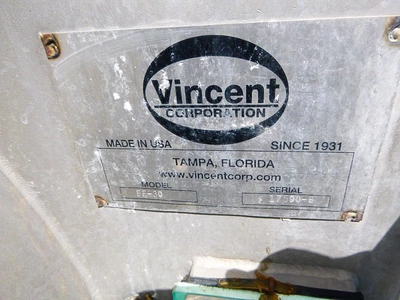

Sludge Press manufactured by Vincent. Model EF-30. Stainless Steel, serial number 17590-8. 30HP with a capacity of 300-1500 gpm. Built in 2019 and is presently installed in operation. Serial 17590-8 (Se fiber filter model FF-30)

Featuring fine filtration of high gpm throughputs, the Fiber Filter is a unique machine. It operates continuously with a fabric filter that is vibrated clean by the process flow, requiring only occasional back-flush cycles.

Liquid flows with fiber contents ranging from 0.3% to 1.5% are thickened to a range of 4% to 14% solids with the Fiber Filter. The filtrate liquid is remarkably clear. The Fiber Filter can replace equipment ranging from pre-thickening screens to centrifuges. Fiber Filters can be used both to thicken flow ahead of a screw press and to remove fiber from press liquor. Mechanically the Fiber Filter has a rotating paddle impeller that whirls and pulses the incoming fluid against the inside of a cylindrical filter screen. The filter sleeve, held taught in a frame, is made of a woven polymer fabric. The fabric is available in meshes ranging from 25 microns (0.001\") to 300 microns (0.012\"). Fabric tension is adjusted from outside the machine, improving sanitation and facilitating operation.*

Quantity: 1
Capacity: 1,500 gpm
Width/Dia: 4 Feet
Length: 10 Feet
Height: 6 Feet
Weight: 2,400 Pounds
Motor HP: 30
Material: ss304
