NEW 2014 OUTOTEC PF 96/96 M48 2 60

### Outotec Larox Vertical Pressure Filter ###

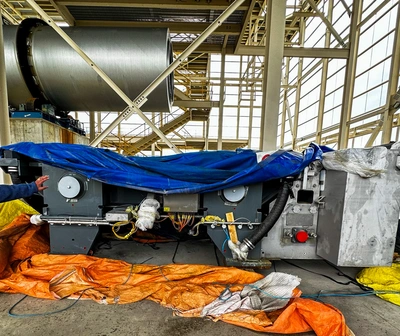

Vertical pressure filter press. Manufactured by Outotec (Larox).
- 1033 sq ft vertical pressure filter press. Model #PF 96/96 M48-2-60. Rated to 16 bar pressure
- Capacity: 23,500 kg/hr Dry Solids Capacity. Chamber volume 5.76 cu m, Chamber height 60 mm

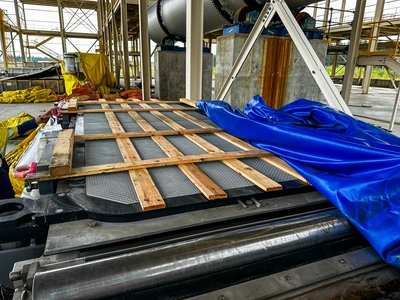

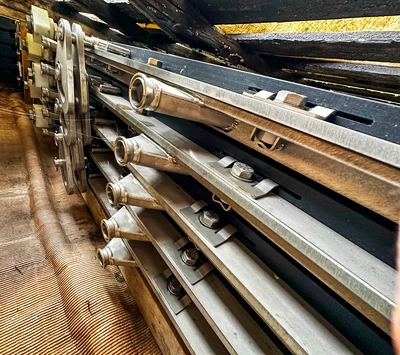

- Material: 316 Stainless Steel Wetted Parts. 16 Filter Plates. Plate Size: 1500 x 4010mm.

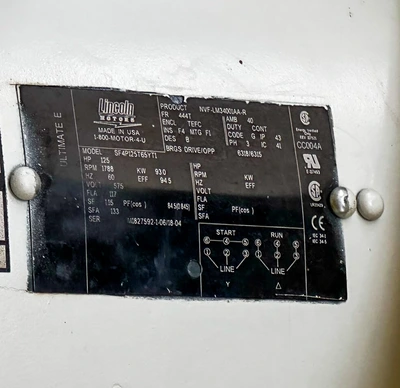

- Main Unit Dimensions 7935 mm x 5470 mm x 5860 mm (L x W x H). Filter Cloth dimensions: 1700 mm x 95.5 mm Filter Cloth (W x L). 110 kw, 1800 rpm, 575 Vac, 3-phase, 60 Hz

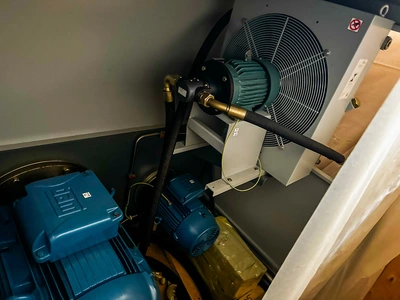

- Hydraulic Power Pack: Hydraulic unit motor (M1HU). 15 KW, 1800 rpm, 575 Vac, 3-phase, 60 hz Hydraulic Oil Cooler Motor (M3HU). 3 KW, 575 Vac, 3-phase, 60 Hz Hydraulic Oil Heater (R1HU). Physical size 3120 x 1865 x 2035 mm tall (3400 kg)

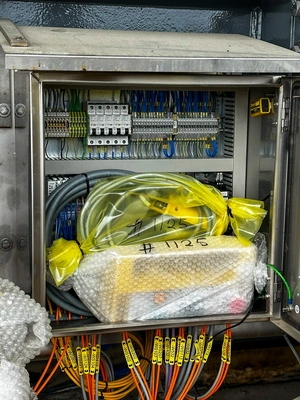

- Controls: Control panel and all plc controls with HMI touch screen. Physical size 800 x 400 x 1900 mm tall.(250 kg)

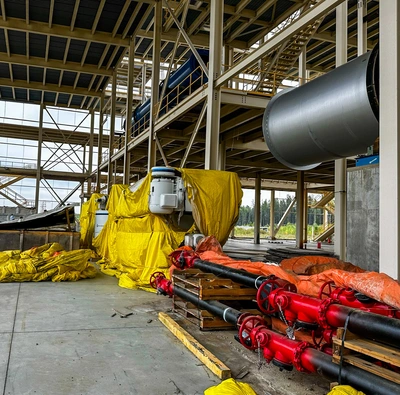

- Air Muffler: 950 mm dia x 2610 mm long (550 kg)

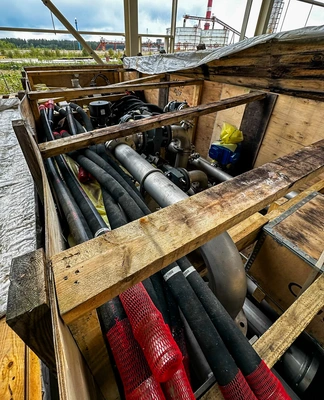

Serial #1125. Built in 2014. New-still crated.

Quantity: 1
Capacity: 26 tons/hr
Width/Dia: 26 Feet
Length: 17.9 Feet
Height: 25 Feet
Weight: 77,000 Kilograms
