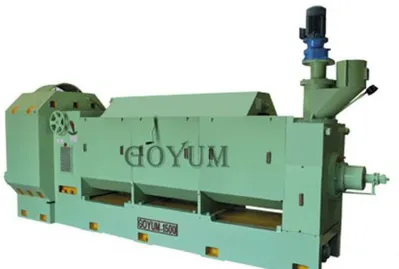

NEW GOYUM G-1500

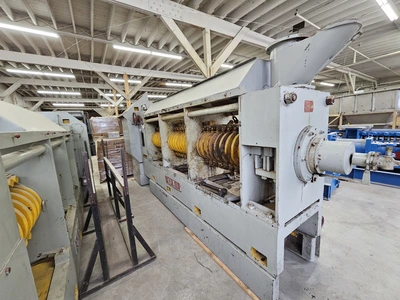

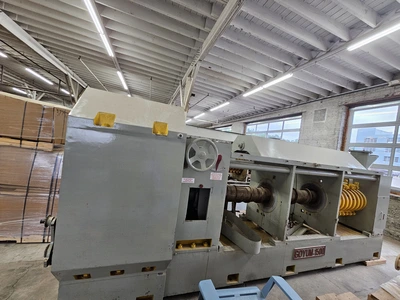

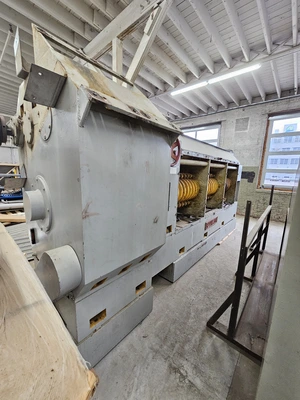

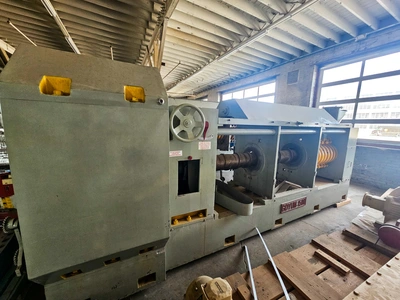

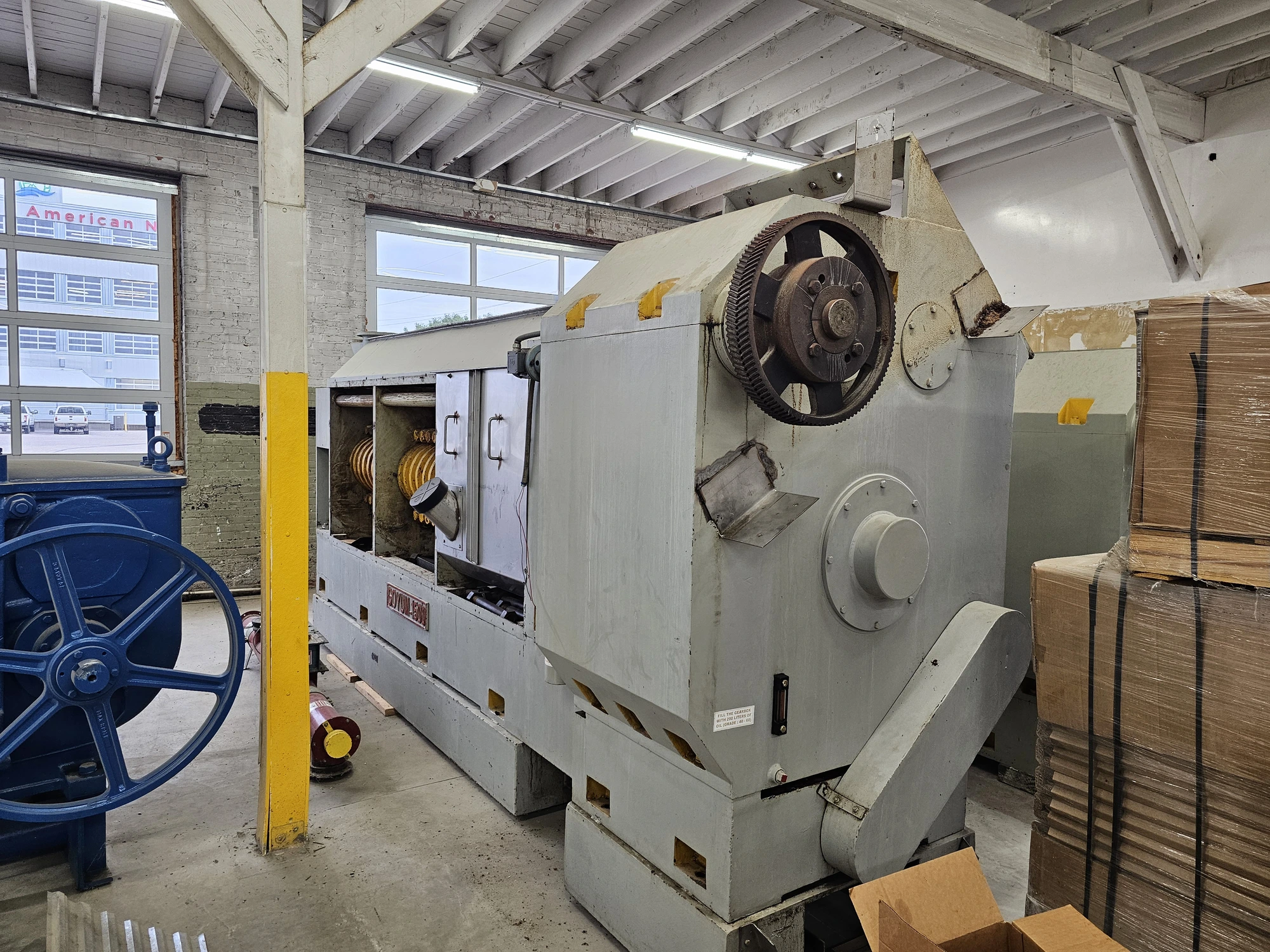

## NEW, never installed. Goyum oil press Model G-1500 ##
Capacity: 140 to 150 Ton (In 24 Hours) in pre-pressing and 50-60 Ton in Single & Final crushing (Capacity differs with material density & quantity of oil in it.). This model has been designed in a simple and symmetrical shape. Used as expeller or press. Ser no. 512 Has NO Motor. (Designed for 180HP). Built 2007.

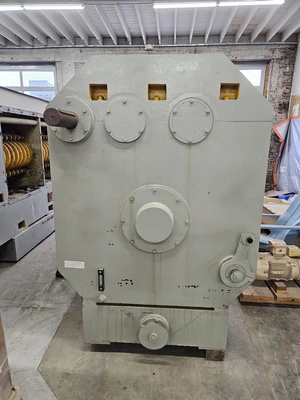

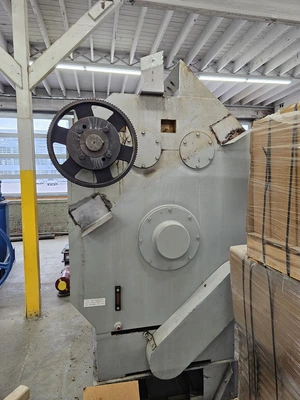

- Triple Reduction Gear Box with helical gears of cast steel and pinion shafts of special steel. Gearbox is aligned with all the bodies on a single fabricated base.

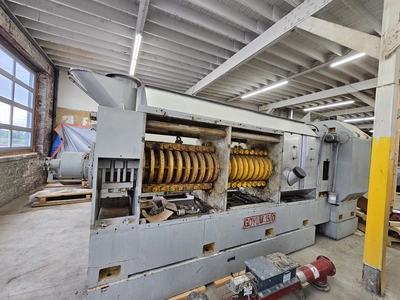

- This expeller has Three chambers of Cast Steel, vertically hinged. Each of 36\" long. Two of the 3 cage assemblies have been removed.
- Cake thickness can be adjusted on running Machine.

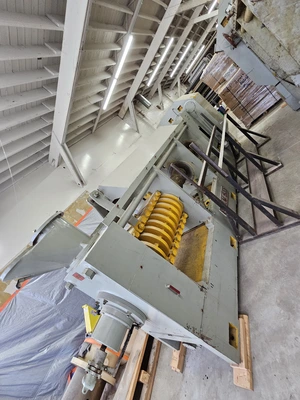

- Worm Assembly, discharge ring, compression ring are all hard faced welded.
- Main Worm Shaft can be withdrawn without disturbing the Gear Box. The shaft is water cooled.
- Crammer Shaft for extra cramming of the Seed or Cake in the feed body is completely supported on Bearings.
Overall Machine Dimensions (Approx.) Length:3550mm, Breadth:1300mm, Height:3600mm (including motor for kettle gearbox)

Quantity: 1
Capacity: 150 MTPD
Width/Dia: 52 Inches
Length: 140 Inches
Height: 142 Inches
Weight: 30,000 Pounds
