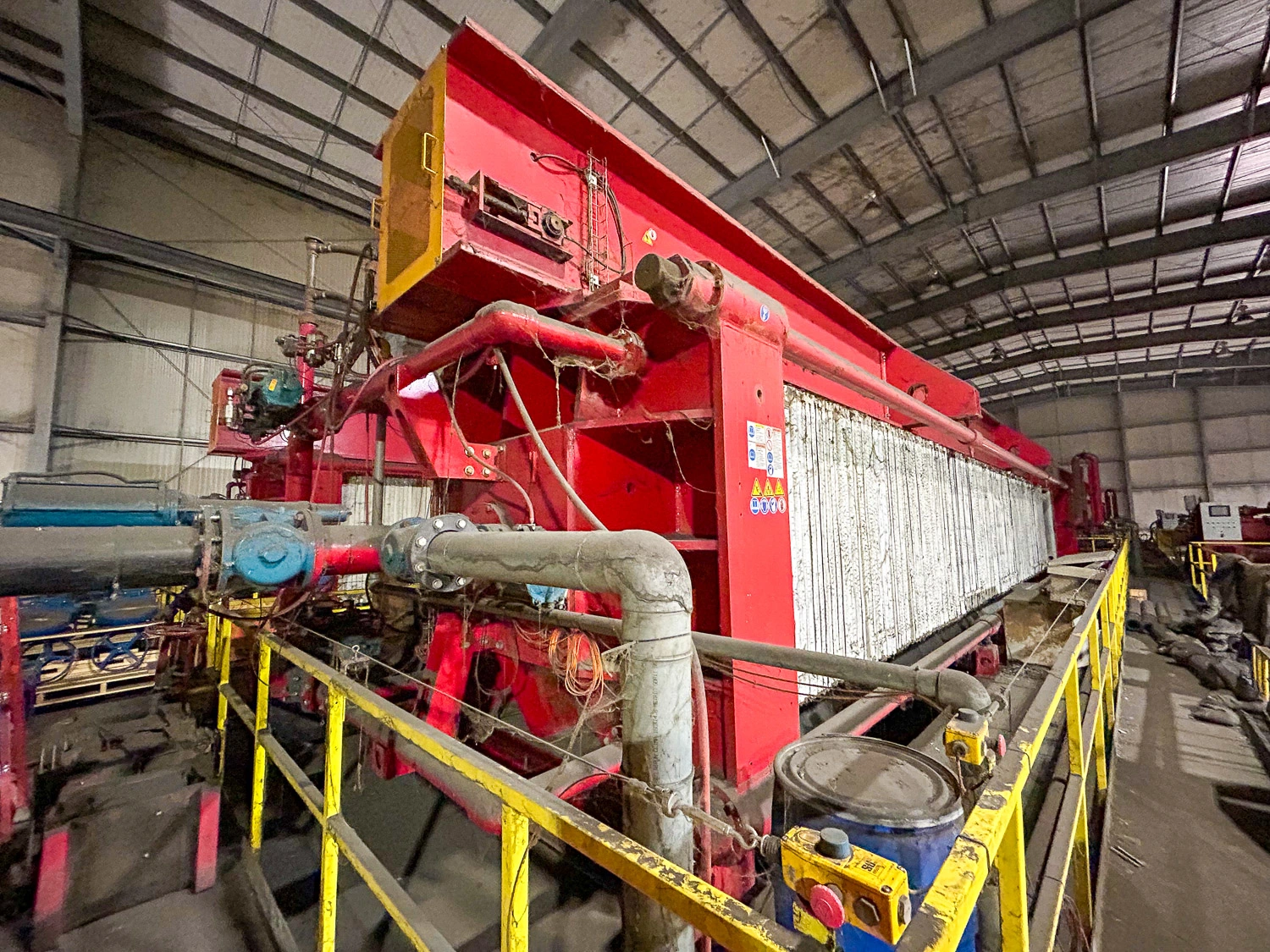

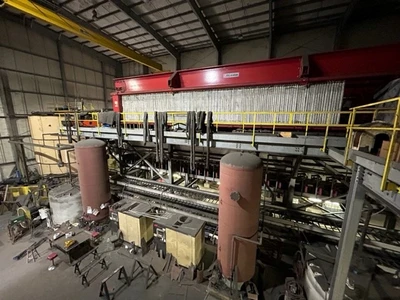

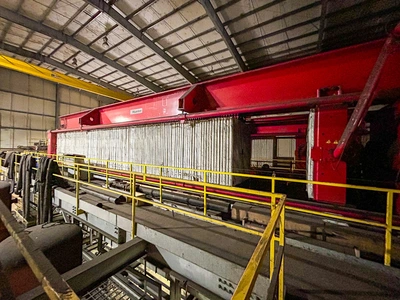

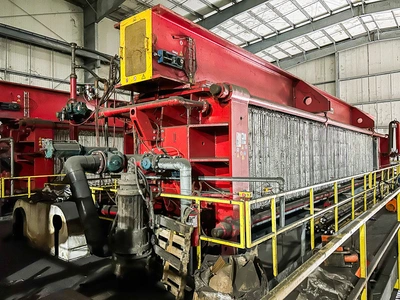

Plate and Frame Filter Press 2362 sf

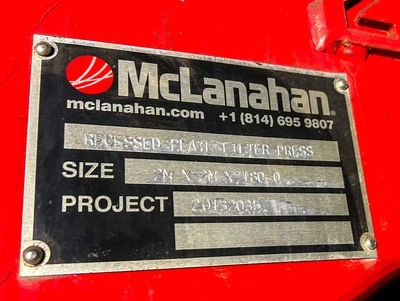

### McLanahan Recessed Plate Filter Press 2362sf Like NEW ###
- These 4 presses were installed and tested - never ran in production
- Polypropylene plates - plate size 2m x 2m (approx 6.5 ft x 6.5 ft).
- Two presses have 151 plates for 1961 sq ft surface area. Press model pe035e34 (Membrane)
- Two presses have 180 plates for 2362 sq ft surface area. Press model pe035e42 (Recessed Plates)
- Pressure rating at 200 psi
- Approx size 843 inches long x 109 inch wide x 169 inch tall, weight each about 140 tons
- Discharge opening 89 inch x 613 inch

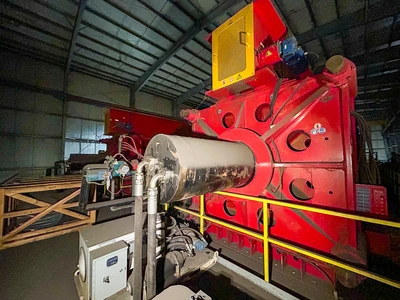

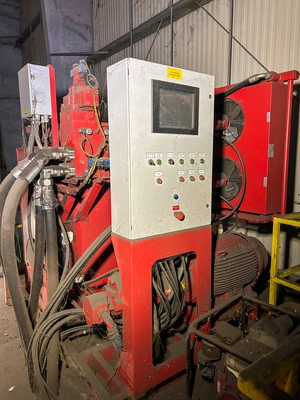

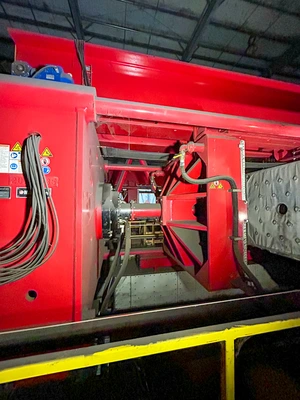

- Each press has integral hydraulic system

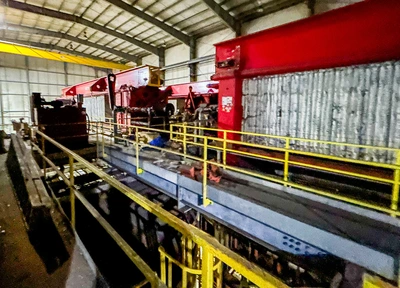

Overhead beam design. The Overhead Beam style results in faster opening and closing for greater production and better cake release in tailings applications. It also provides larger plate openings for better cleaning and maintenance access. Unlike the traditional plate and frame presses, McLanahan’s Filter Press line features modern recessed plates or membrane plates, both of which create a chamber for dewatering the slurry without trapping the cakes within the frames. This allows the dewatered cakes to discharge more easily than with traditional plate and frame presses. McLanahan’s membrane filter plates offer higher production rates for compressible slurries or slurries that require a cake wash or cake blow.
**Priced for the LOT - Qty (4) presses**

Quantity: 4
Capacity: 2,362 Sq Ft
Width/Dia: 9 Feet
Length: 70.2 Feet
Height: 14 Feet
Weight: 140 Tons short
Pressure: 200 psig
