USED 2007 GOYUM G-1500

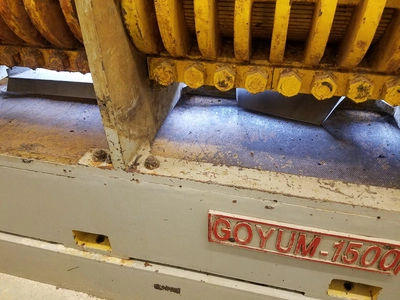

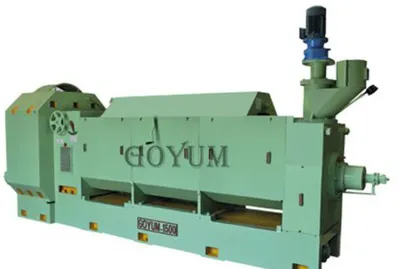

### Goyum Oil Press Model G-1500 ###

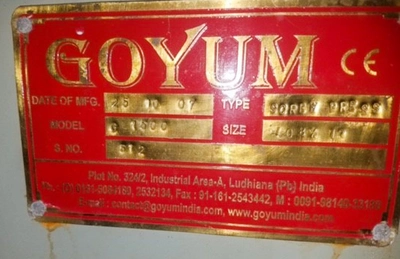

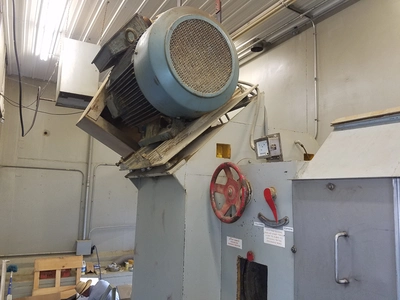

This model has been designed in a simple and symmetrical shape. Used as expeller or press. Ser no. 512 with 180HP ABB motor. Built 2007.
- Capacity: 140 to 150 Ton (In 24 Hours) in pre-pressing and 50-60 Ton in Single & Final crushing (Capacity differs with material density & quantity of oil in it.).

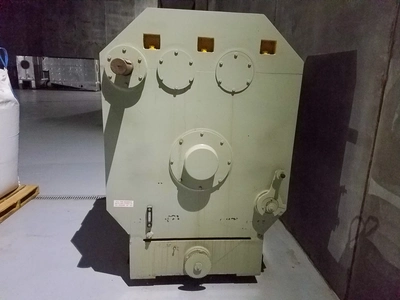

- Triple Reduction Gear Box with helical gears of cast steel and pinion shafts of special steel. Gearbox is aligned with all the bodies on a single fabricated base.

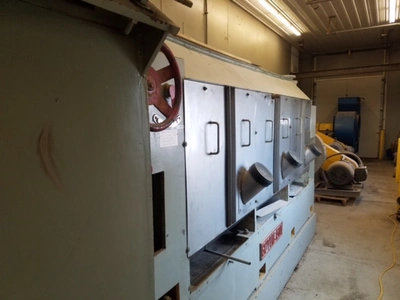

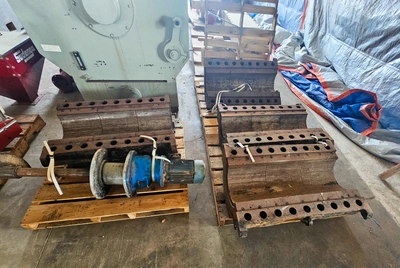

- This expeller has Three chambers of Cast Steel, vertically hinged. Each of 36\" long.
- Cake thickness can be adjusted on running Machine.

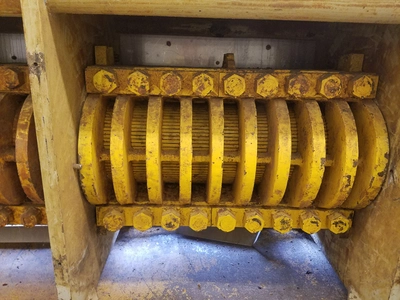

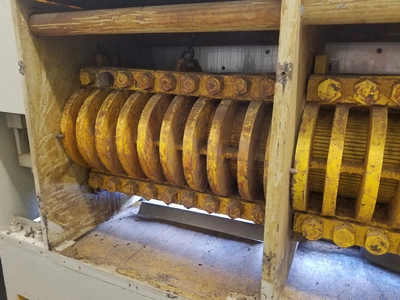

- Worm Assembly, discharge ring, compression ring are all hard faced welded.
- Main Worm Shaft can be withdrawn without disturbing the Gear Box. The shaft is water cooled.
- Crammer Shaft for extra cramming of the Seed or Cake in the feed body is completely supported on Bearings.

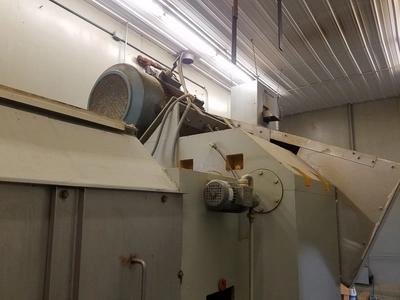

Overall Machine Dimensions approx Length:3550 mm, Breadth:1300 mm, Height:3600 mm (including motor for kettle gearbox)

Quantity: 1
Capacity: 150 MTPD
Width/Dia: 1,300 Millimeter
Length: 3,550 Millimeter
Height: 3,600 Millimeter
Weight: 30,000 Pounds
Motor HP: 180
