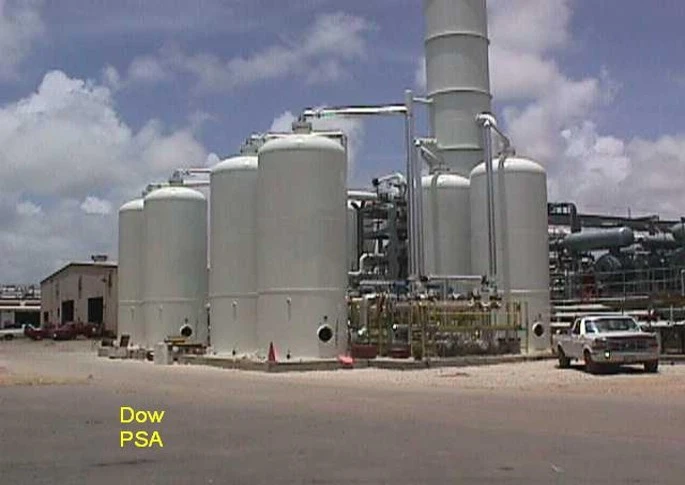

## PSA system (pressure swing adsorption) NEW, Never Operated ##
- Built by UOP in 1997 - never put in service.

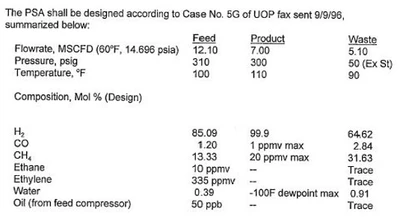

- Rated at 12.1 MM SCFD flowrate infeed, 7 MM SCFD product output
- Hydrogen purity 99.9%
- System pressure 310 psig feed, Adsorber Vessels rated to 345 psig - 4 bed design
- Supply is Surge tank V-700 and (4) adsorbers and valve/piping skid
- Valves are Valtec
- Approx footprint is 20 ft x 37 ft. Weight PSA skid 21,000 lbs, EACH adsorber vessel 19,500 lbs each, Surge tank 62,500 lbs
See Links for P&ID and Arrangement. We have manual on request
Quantity: 1
Capacity: 7,000,000 scfd
Width/Dia: 20 Feet
Length: 37 Feet
