Live Bottom Hopper (3)

### Live Bottom Hopper Receiving Pit Feeders ###
**New, Old Stock. Never Used**

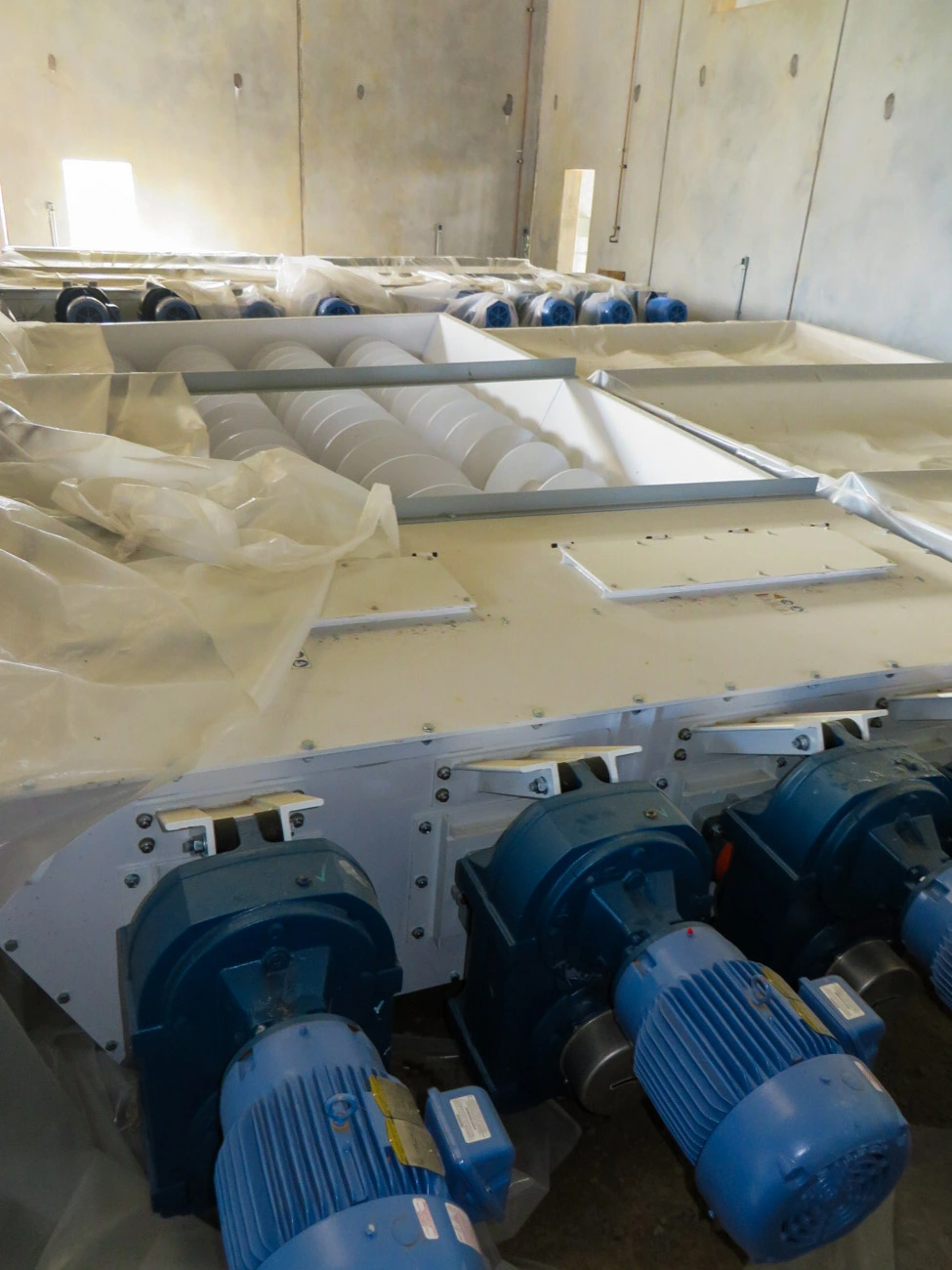

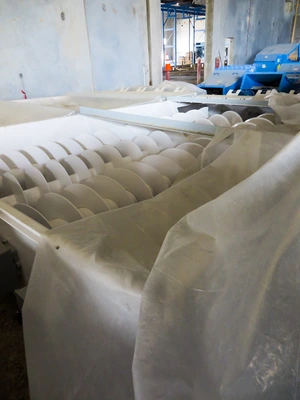

Laidig 14\' x 14\' Multi-Screw (Auger) Receiving Pit System. (Three available-priced separately).

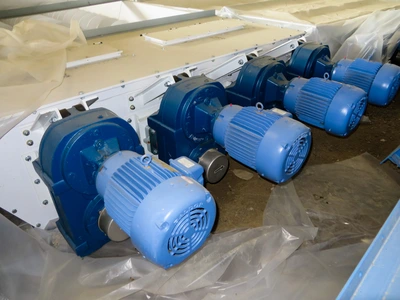

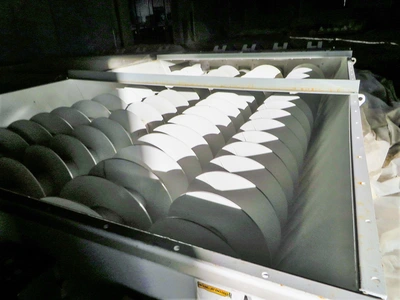

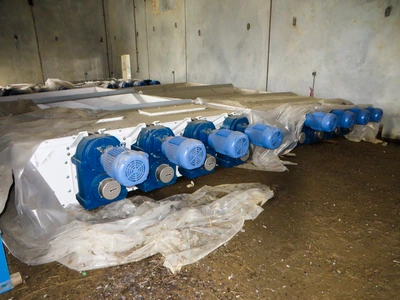

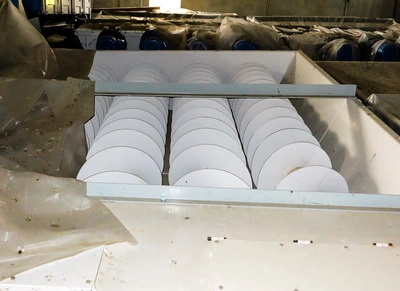

- (4) augers 24\" dia in a common trough (allow for a 14\' x 14\' square pit opening in the floor above & 9\' x 9\' from centerline of pit to centerline of outlet, each driven by a 10HP motor 230/460V, 60Hz @ 1750RPM, TEFC with direct drive gearbox
- Anti-jam sensors and zero speed switch
- Support legs to concrete floor
Designed for
- Particle size 1/2\" minus
- Bulk Density: 25 lb/cu ft
- Up to 75% moisture content
- Ambient operating temperature
- The hopper/receiving pit is designed to deliver 133 cubic feet/minute (100 tons/hr @ 25 PCF)

No control panels are included. We can supply control panels for additional. Three available- priced separately.

Quantity: 3
Capacity: 100 tons/hr
Width/Dia: 149 Inches
Length: 265 Inches
Height: 157 Inches
