Biomass Bale Handling & Grinder System

### Biomass Bale Handling System ###
- 4 infeed processing lines for bulk bale handling and grinder plus silo and baghouse
- Bale size was 3\' x 4\' x 8\' long - processed in modules of 6 (2 bales wide x 3 bales high.
- Capacity 465 tons/day x 4 lines - 1,860 TPD.

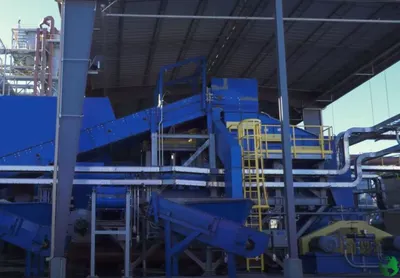

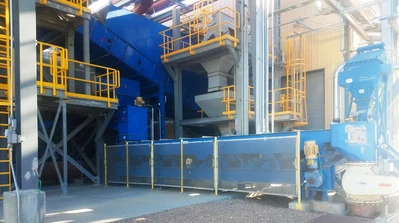

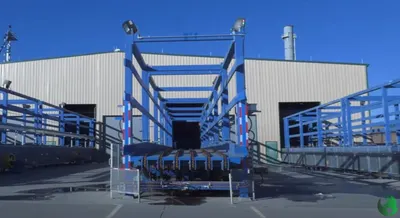

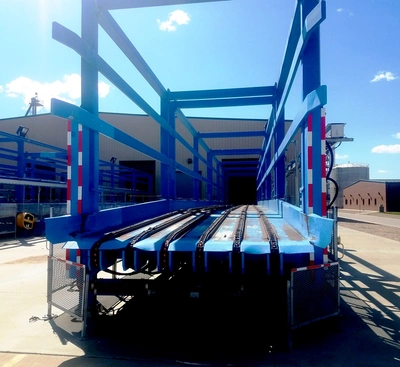

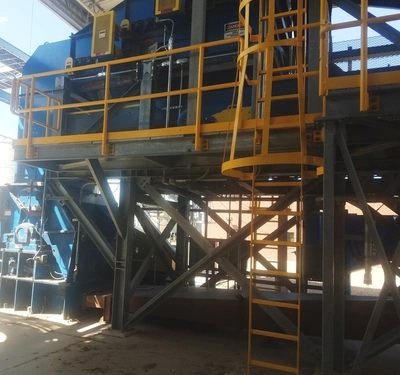

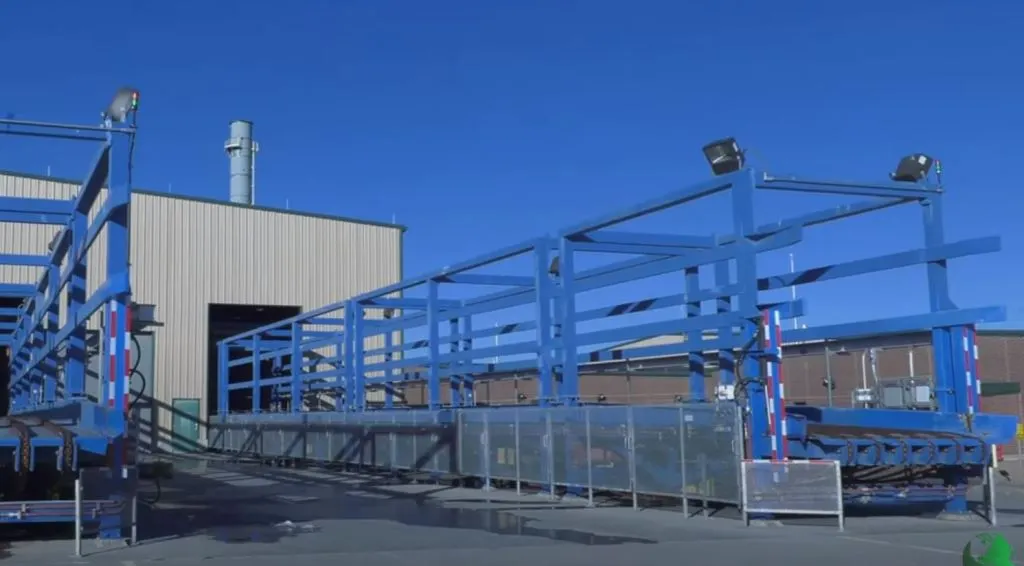

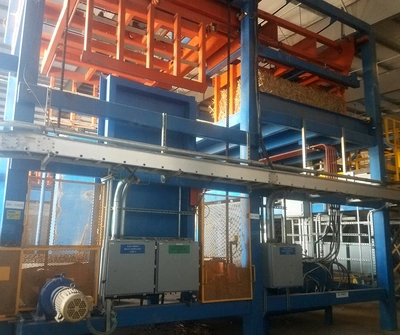

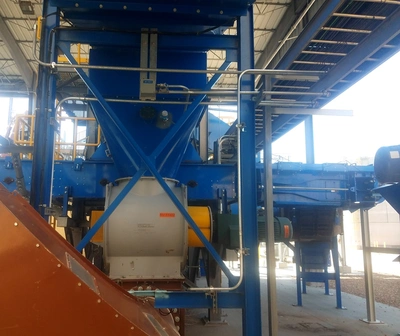

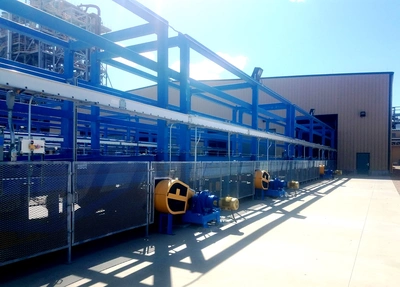

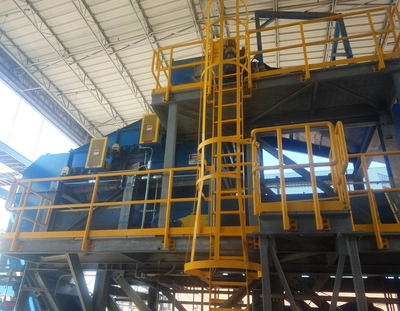

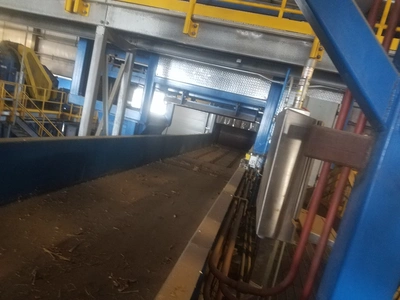

Each line can hold 2 trucks worth of bales prior to the singulator (150 tons total (288 bales). Each line includes automatic singulation, de-stringing, coarse chop of bales, hydraulic power pack, and then grinders. The silo collects \"fines\" from the operation for disposal. This system fed an ethanol plant, and a biomass boiler/cogeneration system. Ideal for both. Grind size was <1” but screens can be changed to modify grind size. The biomass handling equipment would work perfectly in preparing biomass for a pelleting operation, or for burning in a biomass boiler from the included silo. Or this could be entirely repurposed to your need. Built 2013 - in very good condition. The general layouts and general description of this equipment are attached as links for more detailed information.

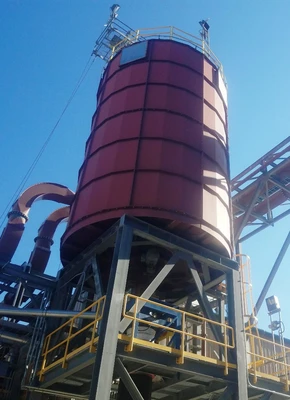

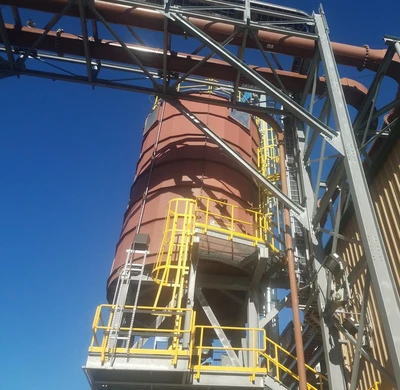

This system has been removed except for the silo/baghouse system.
- See links for drawings and description.
- See video of system in links - biomass system starts at 0:57 second mark.

Quantity: 1
Capacity: 1,860 TPD
