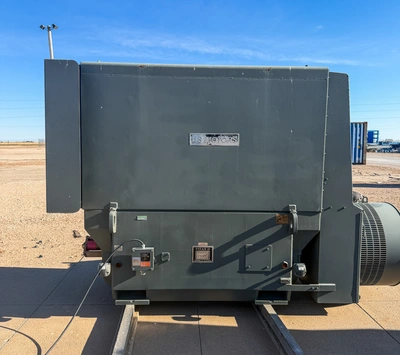

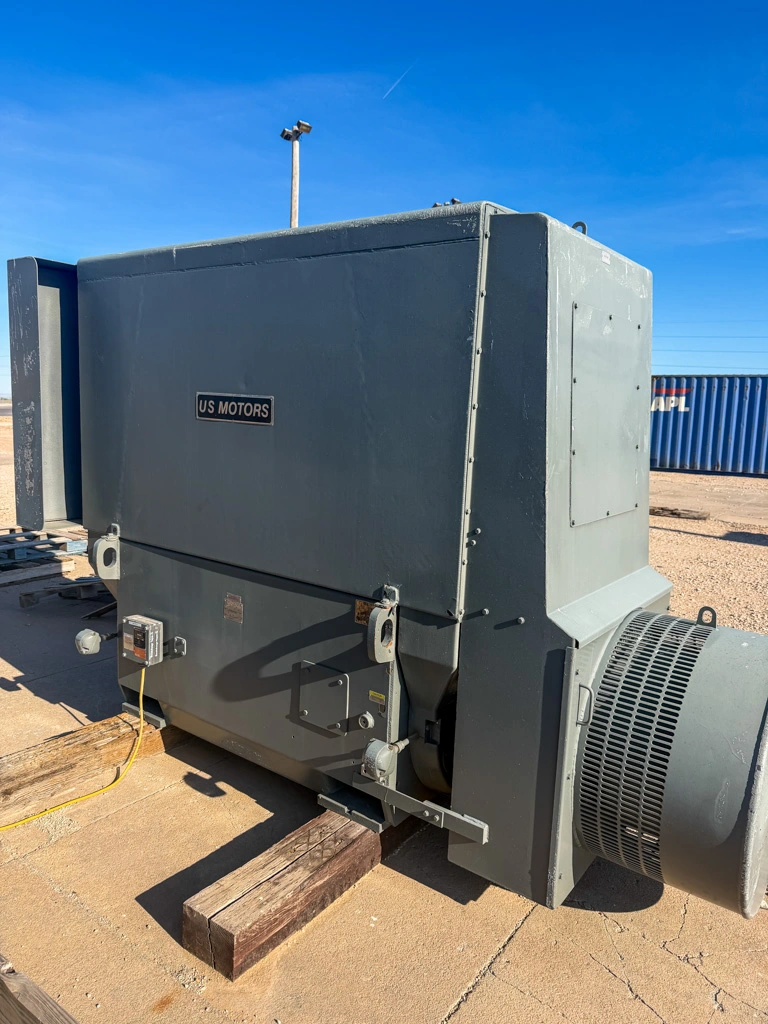

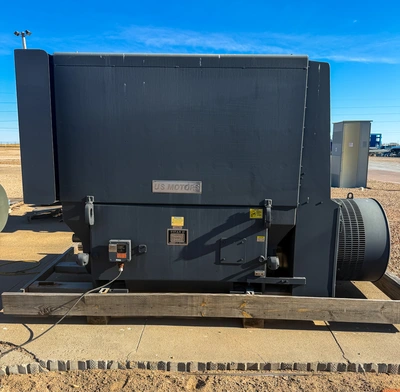

NEW 2023 NIDEC US MOTORS TITAN II

### New 1500 HP motors by Nidec US Motor, Inverter Duty ###

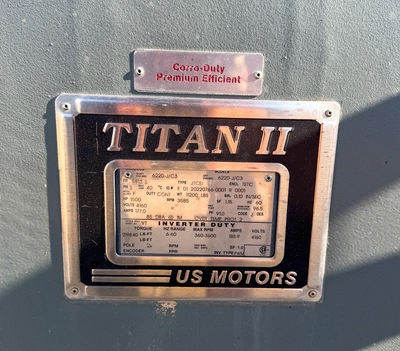

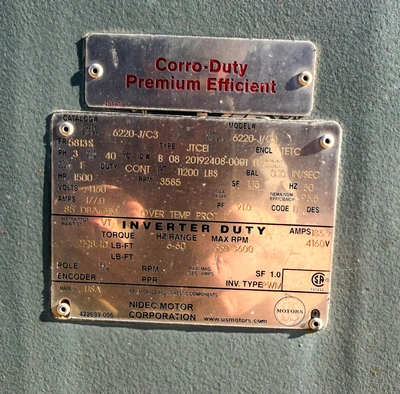

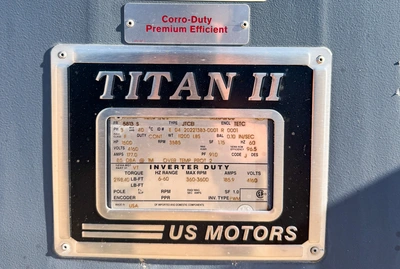

Model Titan II. Steel cage, total enclosed fan cooled motor TETC. Manufactured by Nidec US Motors. Inverter duty 1500HP, 3 phase, 60Hz, 3585rpm, 4160 volt, 177.0 amp.

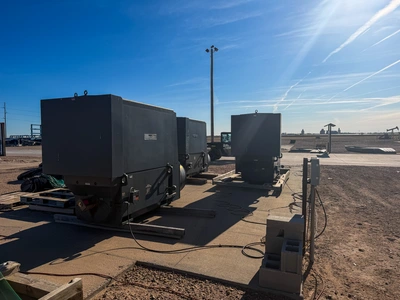

- Three available - priced separately
- New motors - idle since 2023 outside
- The TOTALLY ENCLOSED TUBE COOLED TITAN® motor type JT has a cast iron brackets and heavy fabricated steel frame construction with oversized grease lubricated anti-friction bearings. To ensure a high degree of corrosion resistance, steel tube construction is standard. Further, the top hat assembly is treated with a Vacuum Pressure Impregnation cycle of 100% solid epoxy coating all surfaces. The VPI system, along with other internal and external protective treatments, provides exceptional durability in hostile environments. The winding is constructed with full Class F materials and receives two cycles of 100% solid epoxy VPI.

Quantity: 3
Weight: 11,200 Pounds
Motor HP: 1500
