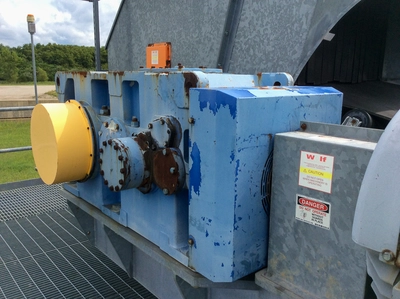

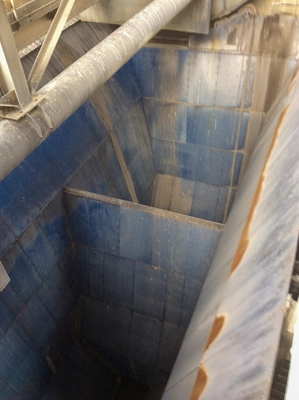

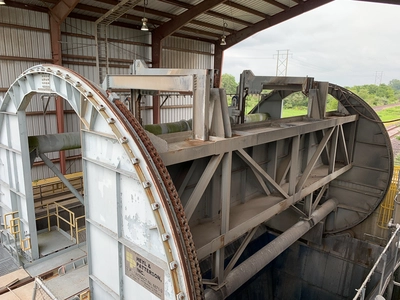

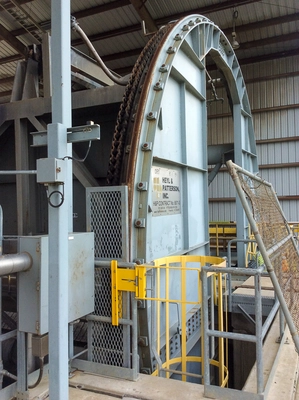

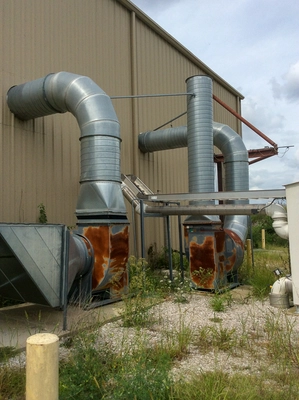

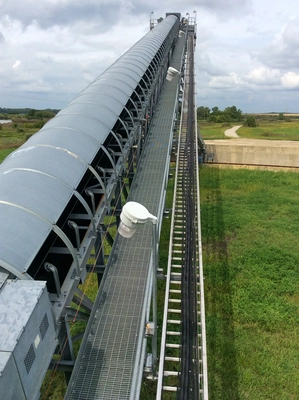

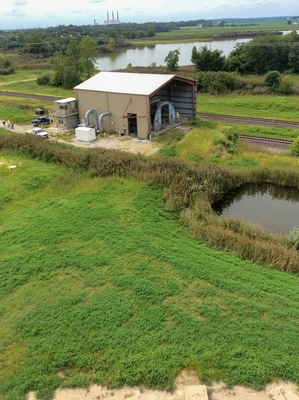

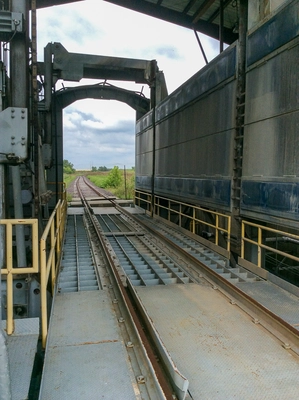

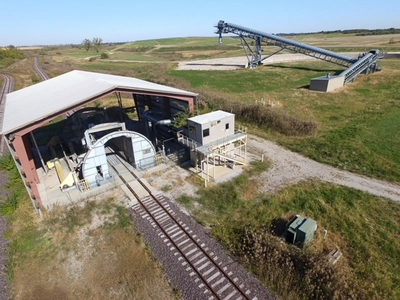

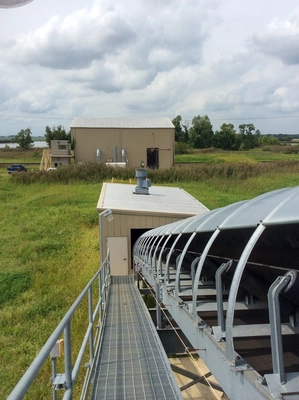

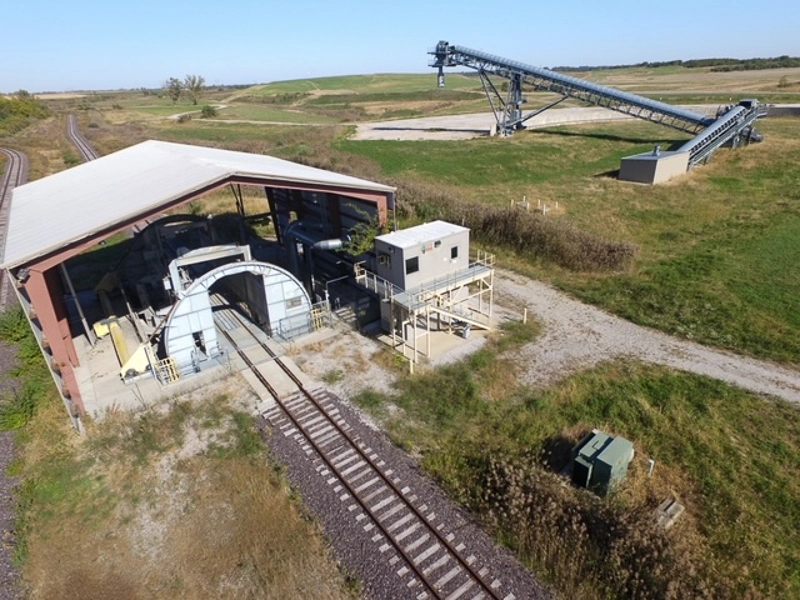

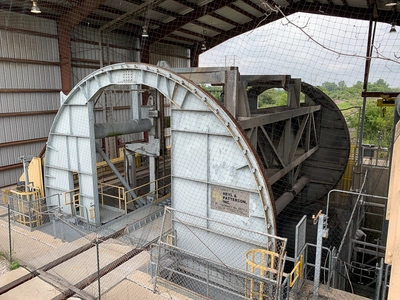

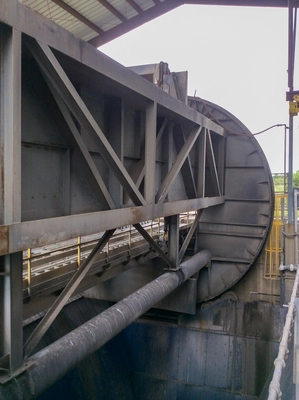

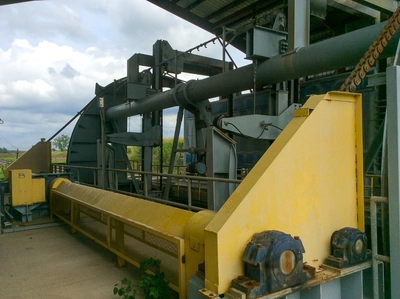

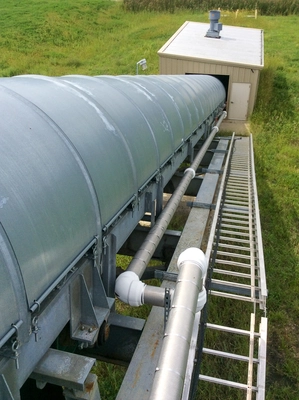

Heyl & Patterson Rotary Railcar Dumper System Designed to handle 3000 TPH. Can purchase outright to relocate. Included - Dumper, 309 ft conveyor, 2 control rooms, building over the dumper, all electrical, dust suppression system. Details - Inclined conveyor capacity 3000 TPH, 72\" wide x 309\' long at 476 fpm. Roller spacing 1\'-0\" with 450 HP motor drive. Inclined 16 degrees, length 309\'-10-1/4\" pulley centers. Also a feeder conveyor 96\" wide x 16 ft long at capacity 3000 TPH, Size/Belt Speed 96”/110 FPM- Variable Speed Roller Spacing 1’0” Max HP 125 motor 16’0” Pulley Centers. Hoppers: Dims and Angles 24’ W x 47’ L x 35’ Ht, 74.8 Min Slope, 70 degree Angles Lining 1/2” Tivar 88 Steel Thickness 3/8”. Conveyor is all galvanized, aluminum conduit, walkway on one side, Paramax 9000 gearbox. Railcar Dumper is equipped with ventilation fans, dust suppression system, 5 ton hoist, Hazleton sump pump model 75-350 SHW, Cutler Hammer MCC rated at 2500A horizontal bus 480v 3/60. . Not Included: rotary stacker conveyor shown at end of run. Installed 2010 and idled in 2012 - used approx 2 years.. See videos in Link. The video showing operation is not this one but is typical.
Quantity: 1
