## Rentech Duct Fired HRSG System (Heat Recovery Steam Generator) ##
### Price Just Reduced ###
This is a ***brand new*** HRSG - never used. Model Waterfall Type \"O\"
- Rated at 200,000 pph at 400 psig saturated steam with economizer (can also run at 200 psig)
- Designed for feedwater flow 400 gpm at 439 psig and 228F
**INCUDES** (also see pdf list in link)

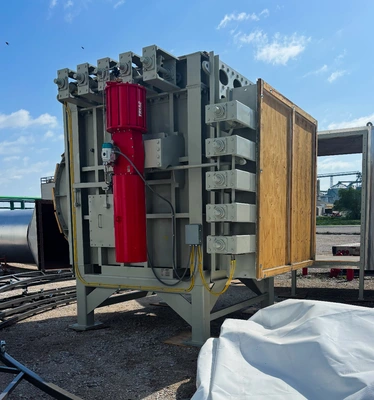

- Natural gas duct burner system and fuel skid with gas train and flame supervision, rated at 136 MMBTU/h

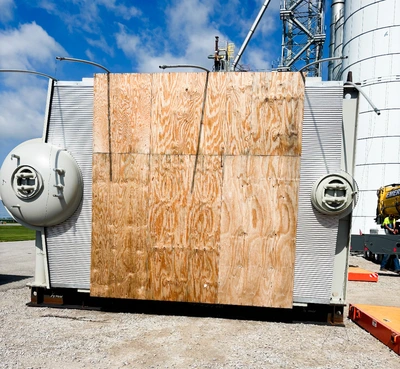

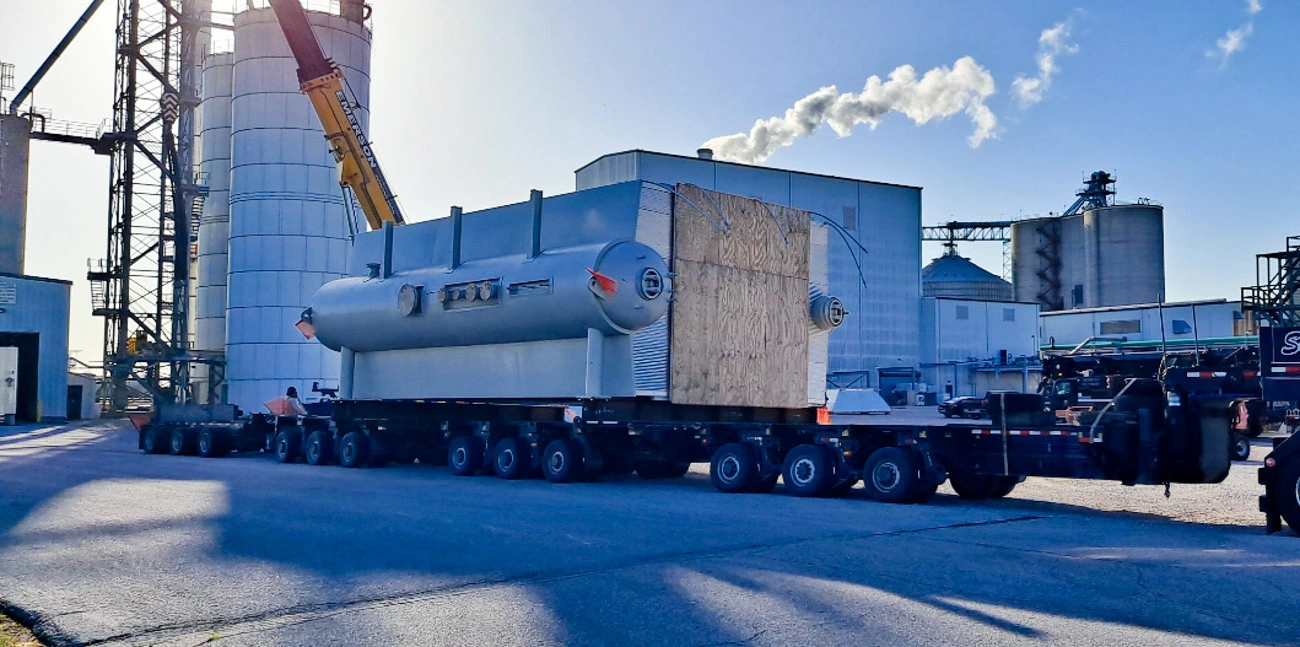

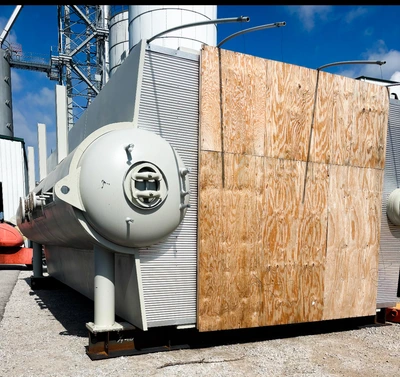

- Steam Generator System (HRSG) Evaporator. \"O\" type tube arrangement with steam drum and mud drum, 2\" tubes

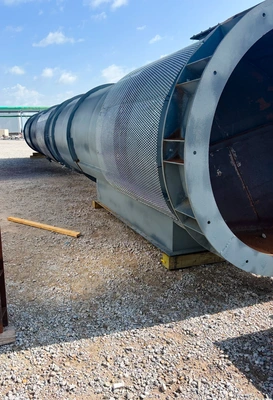

- Bypass stack 50 ft x 76\" diameter
- Exhaust stack 50 ft x 76\" diameter

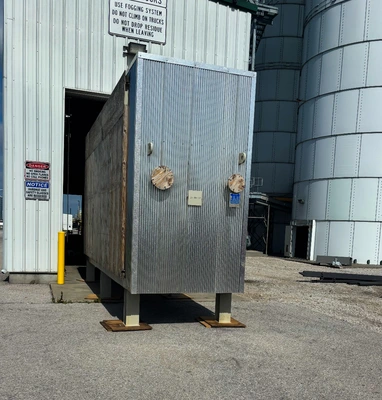

- Economizer - finned tube single pass
- Boiler Control System: BMS - plc controlled burner management system, CCS - combustion control system, HMI touch screen, Allen Bradley plc and HMI
- Interconnecting duct work
- Ladders & Gratings

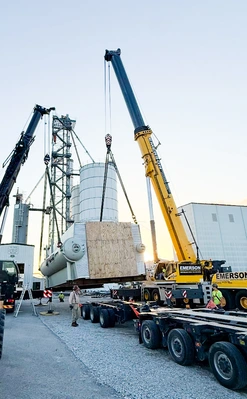

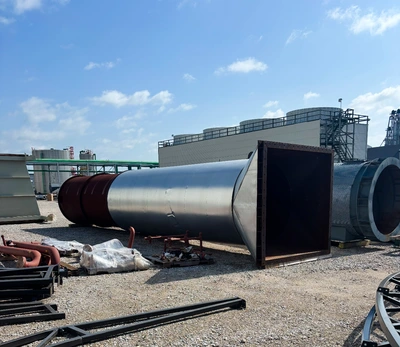

Rentech had pre-fit all structural steel in the shop. Once they were assembled, photos were taken, and pieces were disassembled for shipment.
Rentech can provide 3-D modeling of the complete boiler system including auxiliaries to assist in the system layout and to avoid costly interference and fit-up issues in the field. (ay be extra cost)
**System has been completed (never has been used)**
We have complete shipping documents for number of pieces and sizes.
Quantity: 1
Capacity: 200,000 #/hr
Pressure: 400 psig
