Silos 10,750 cu ft NEW

### 140-Ton Bulk Storage Silo System (NOL-TEC Systems) ###
- **Capacity:** 10,750 Cubic Feet = approx. 70 Tons per silo (There are two silos - sold and priced separately)
- **Dimensions:** Nominal Diameter: 14\'-0, Overall Height: 100\'-0\" - Eave Height
- **Materials of Construction:** A36 Carbon Steel (14-ring cylinder)

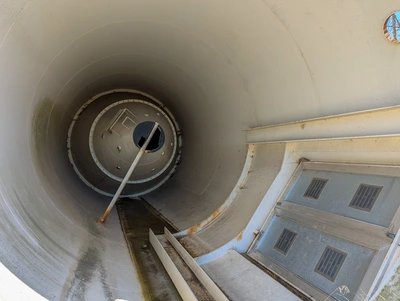

- **High-Flow Hopper Design:** **Upper Hopper:** 3/16\" A36 steel, **Lower Hopper:** 3/16\" A36 steel with 10ga 304SS Stainless Steel liners to prevent bridging
- **Design Standards:** IBC-2009 / Max Material Density: 48 Lbs/Cu. Ft
- **Exterior Access & Venting:** Top-mounted flange configuration for bin vents or dust filtration
- **Pneumatic Connections:** Configured for 6\" Sch. 40 pneumatic fill and recycle

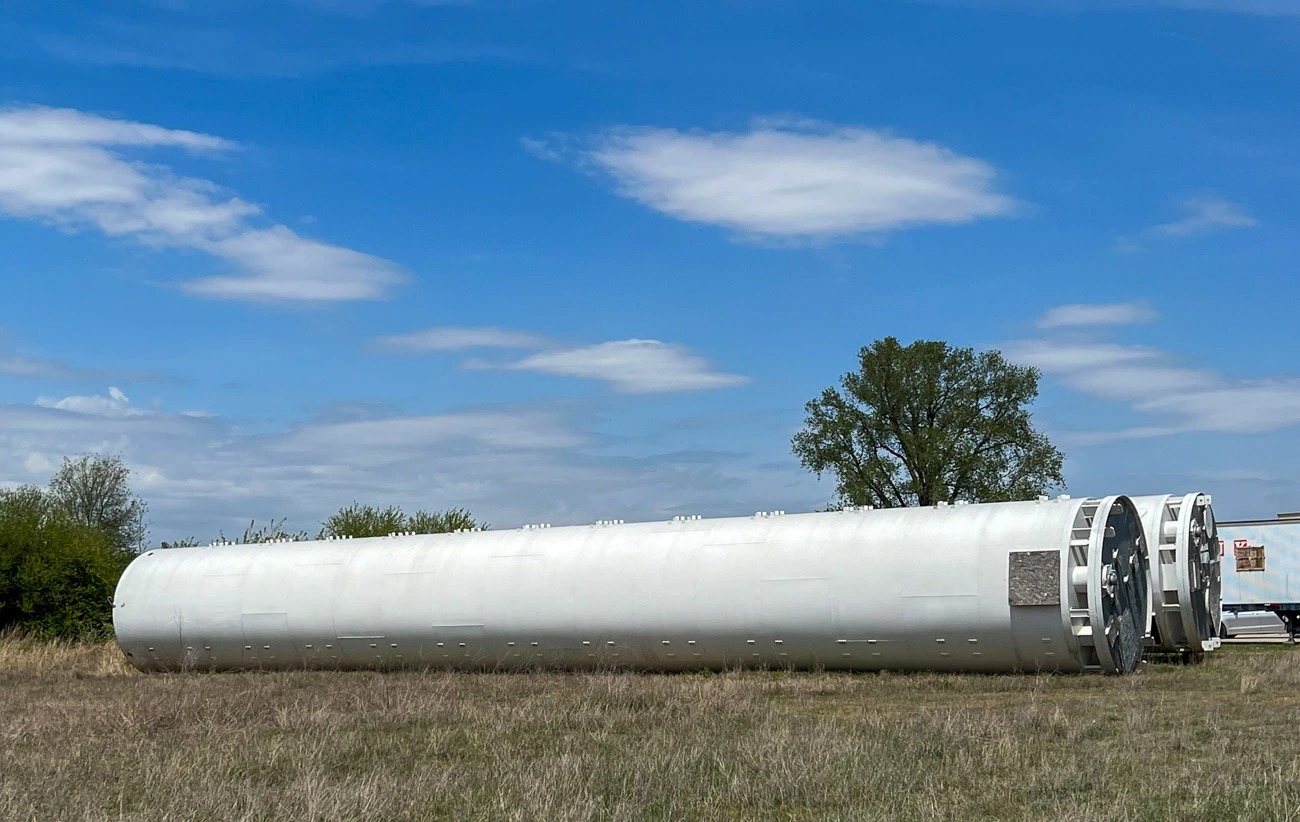

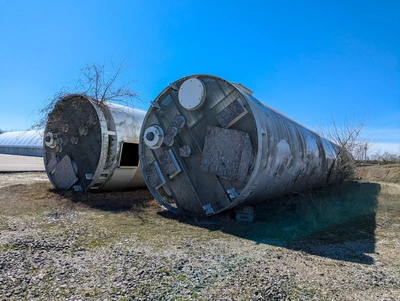

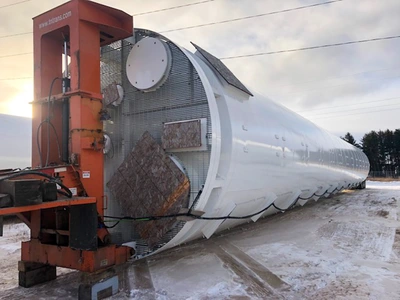

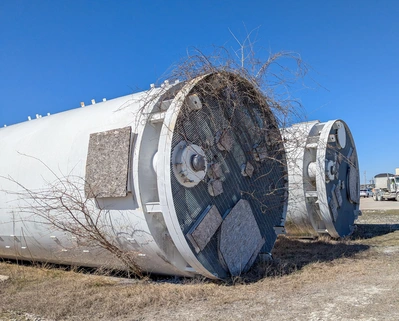

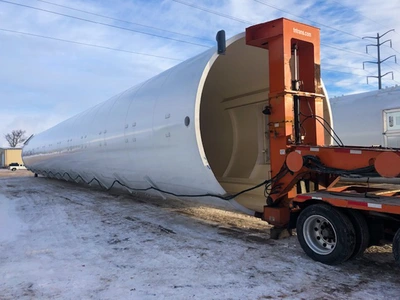

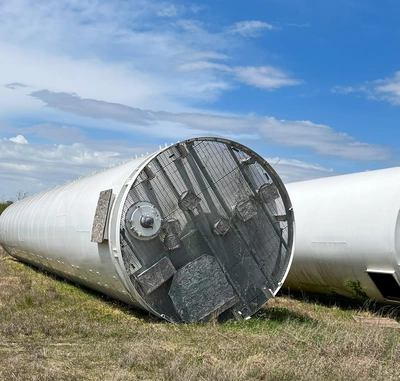

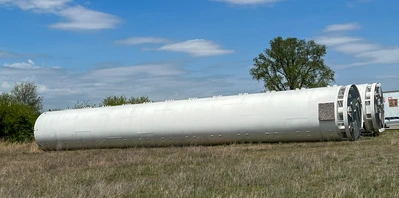

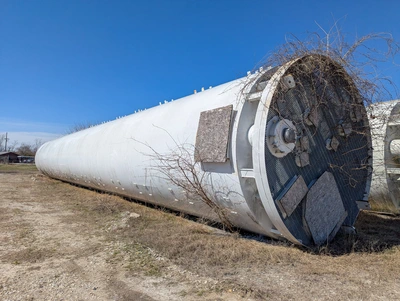

**Never Installed.** Equipment is currently located in a laydown yard and is staged for immediate loading.
Full assembly drawings are available, including weld schedules and anchor bolt layouts for foundation engineering

### Additional Equipment (Priced Separately) SEE Asset 7341
The following engineered blower packages, designed for integration with these silos, are available:
* **75 HP Pressure Blower Package** (Hardy Pro-Air/Gardner Denver)
* **30 HP Vacuum Blower Package** (Hardy Pro-Air/Gardner Denver)

Quantity: 2
Capacity: 10,750 cu ft
Width/Dia: 14 Feet
Height: 100 Feet
Weight: 75,100 Pounds
Pressure: 6.67 MAWP
Material: carbon steel
