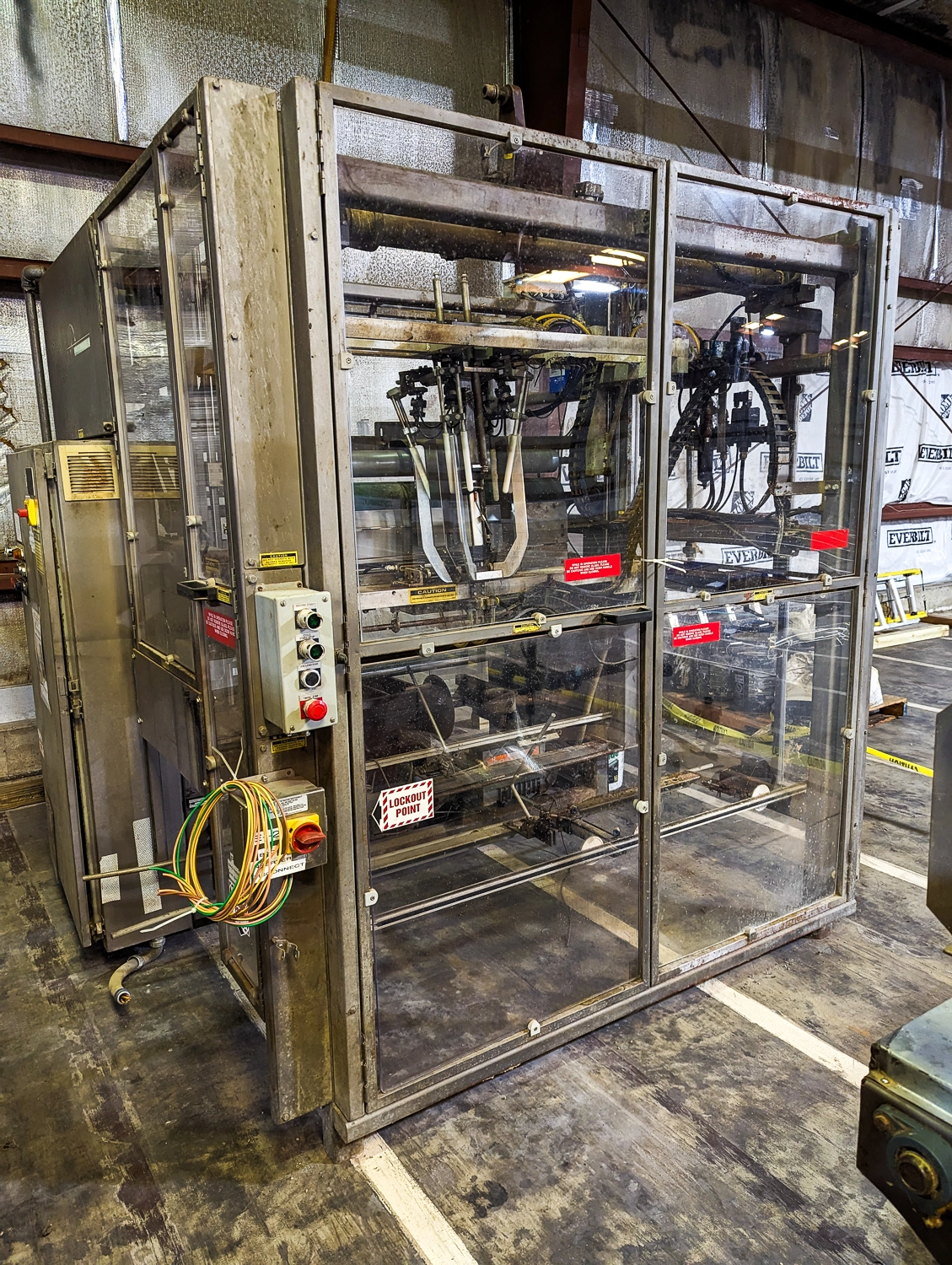

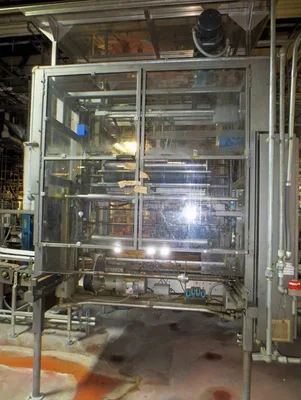

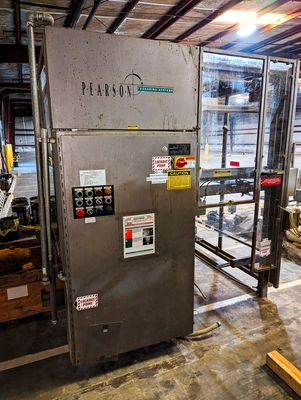

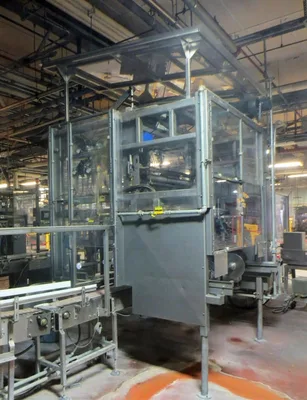

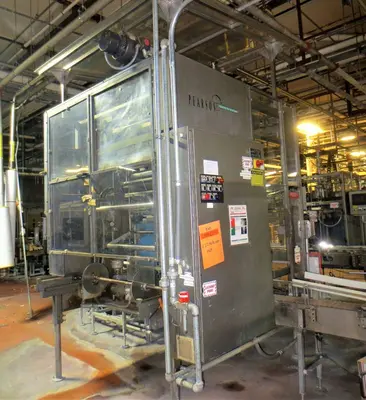

USED 2001 PEARSON BI18

## Pearson Bag Inserter##
Pearson BI18 Bag Inserters open, insert, and cuff plastic bags from roll stock into a wide variety of corrugated cases at speeds up to 18 cases per minute. Equipped with bag opening carriage with vacuum cup assist, four corner cuffing rods and single head bag inserting head, PLC controller, vacuum pump, safety guarding and e-stop. Inserts pre-performed roll stock or gusseted bag stock into cases, filling all corners and cuffing the bag around the outer perimeter. Has a 36\" web width with a 1-1/2\" diameter spool. Has an Allen Bradley SLC 5/01 PLC. Advanced design features guarantee smooth and precise bag placement and handling.

- Uses poly roll bags
- Set up for 50# cube 12\" x 12\" x 12\" box but can be adjusted. Size range L 9.5-24\", W 9.5-17\", H 10-24\"

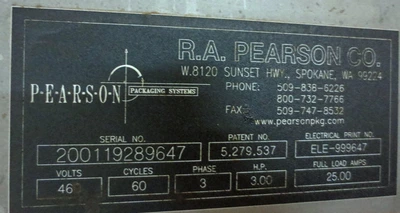

- Believed to be Model BI-18. Serial number 200119289647,
- 3HP 460/3/60
- Built 2001. Idled early 2017.
- In warehouse - ready to load

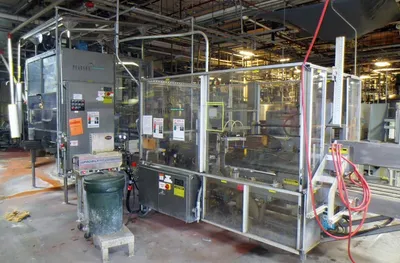

Part of a complete 50# cube filling line (Asset 5976) but will be sold separately. For a list of all components for this line - enter \"5976cube\" in search box.

For a list of all components for this line - enter \"5976cube\" in search box.
