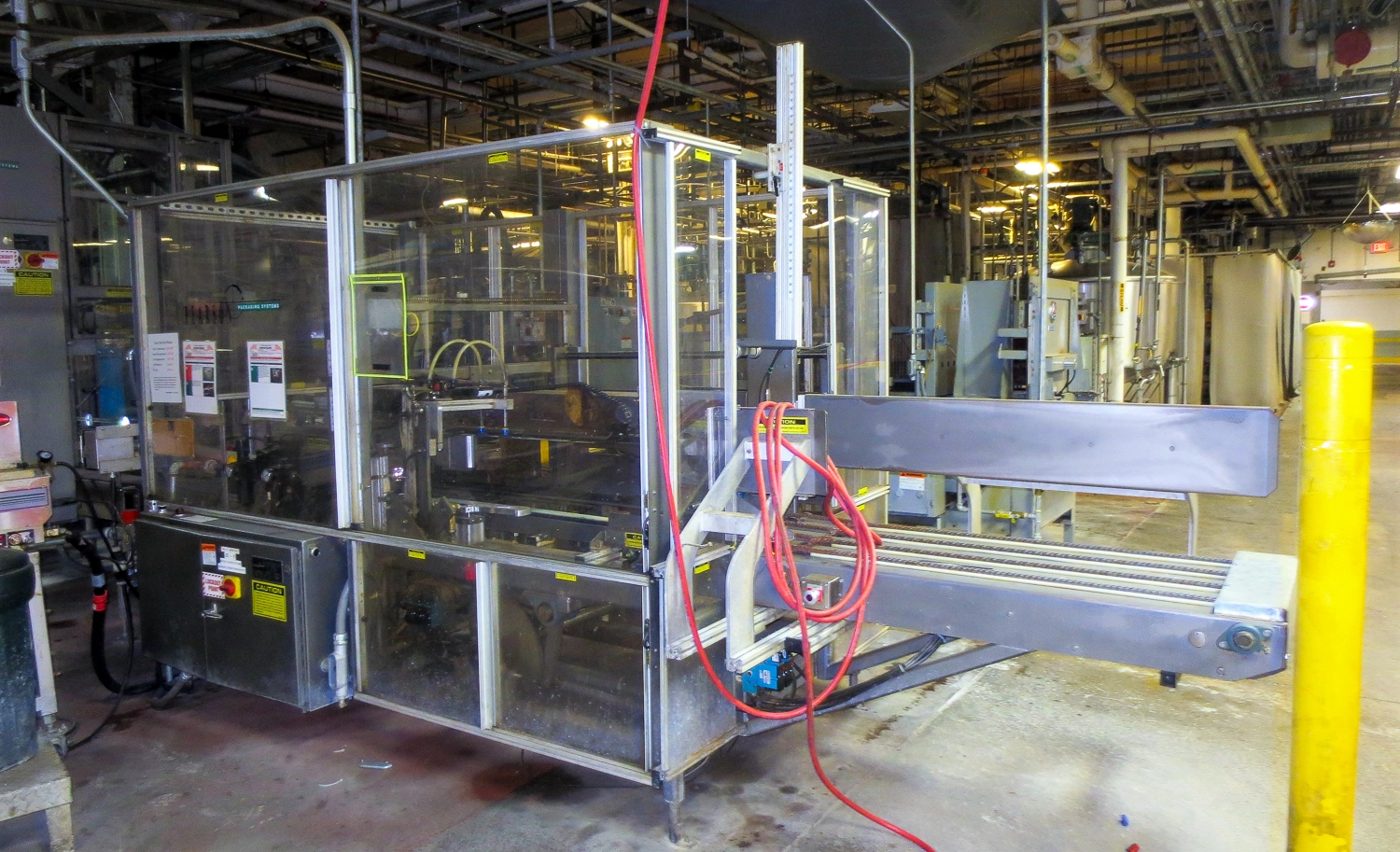

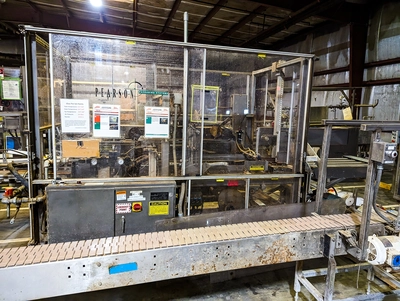

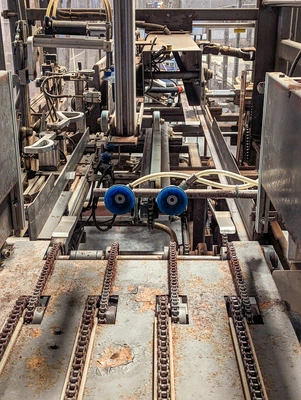

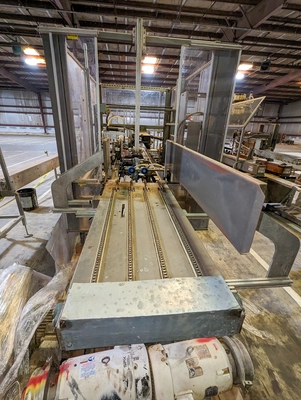

## Pearson Case Erector ##

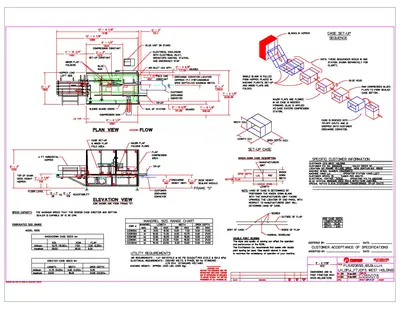

Automatic case erector for knock-down (KD) cases with magazine and hot melt bottom glue system. Set up for Left Hand (LH cases) - we have drawing

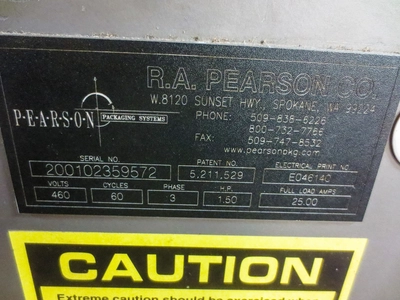

- Model CE-235 serial 200102359572, machine number 9572
- Rated speeds up to 35 cases / minute.
- Feed from right to left when standing in front of machine name and electrical panel

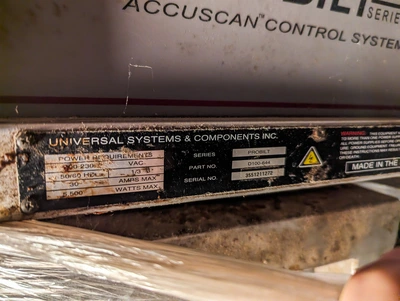

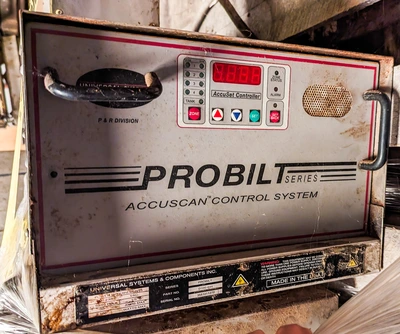

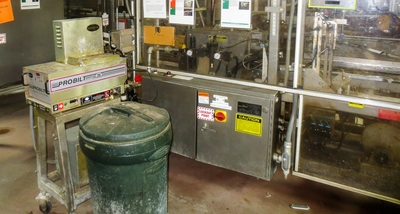

- Includes Probilt hot melt glue system, part No. D100-644, serial No. 3551211272
- Was erecting KD cases for 50# cubes 12\" x 12\" x 12\" but can be adjusted.

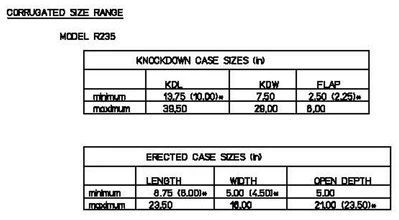

- Case size range: Can adjust to handle cases from 5 to 30\" long, 5.5 to 16\" wide and 3.5 to 24\" tall
- Driven by 1.5 HP motor 460/3/60

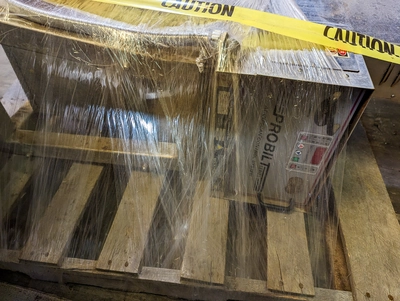

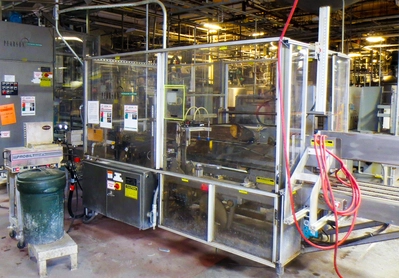

- In warehouse - ready to load
Part of a complete 50# cube filling line (Asset 5976) but will be sold separately. Entire line idled in 2017. Removed, stored, ready to ship.
For a list of all components for this line - enter \"5976cube\" in search box. …..
Quantity: 1
Capacity: 35 cs/min
Width/Dia: 8 Feet
Length: 15.5 Feet
Height: 6.5 Feet
Weight: 4,820 Pounds
Size: 15.5 ft x 8 ft wide
Motor HP: 1.5
