USED STURTEVANT SIMPACTOR 3B

### Pin Mill - Centrifugal Impact Mill ###

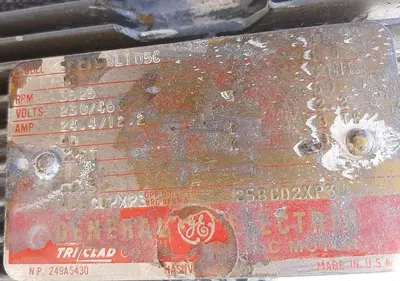

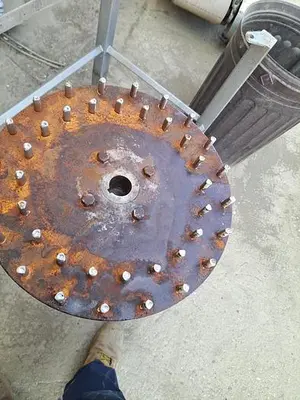

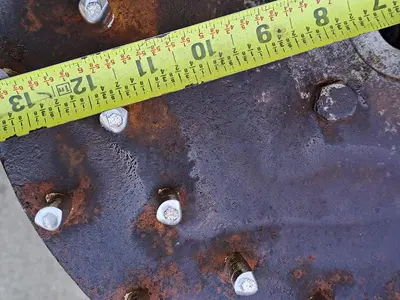

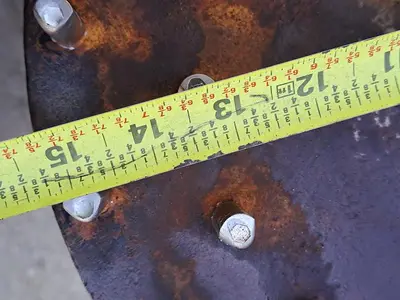

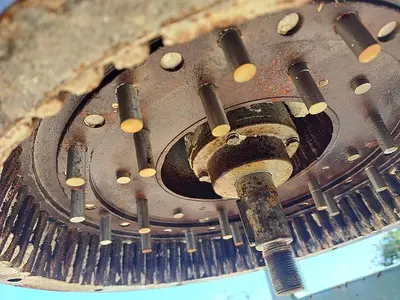

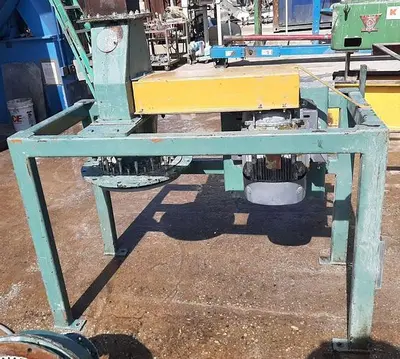

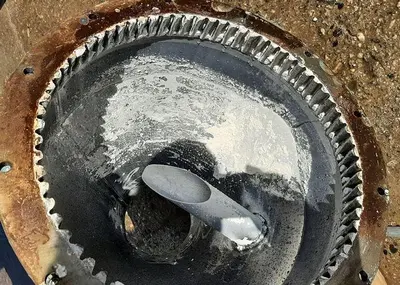

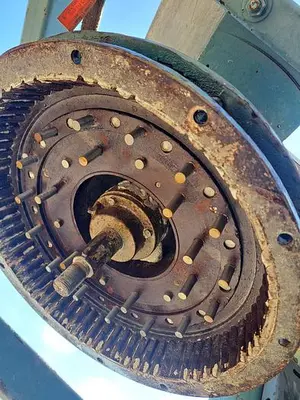

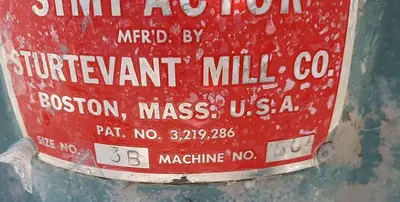

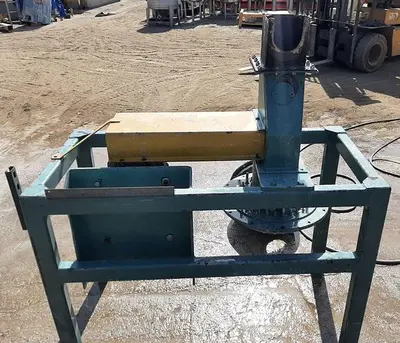

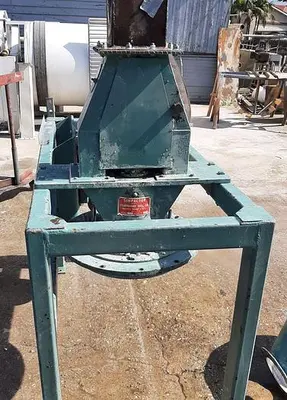

Sturtevant Model 3B Simpactor Mill, 16\" diameter, carbon steel construction. Set up with 6\" x 6\" flanged inlet with 6\" diameter center bottom discharge. Includes 2-part rotating discs, driven by 10 HP inverter motor, rated for 230/460 V, 3-phase, 60 Hz, 3425 RPM. Includes v-belt drive with guard. Serial number 504.

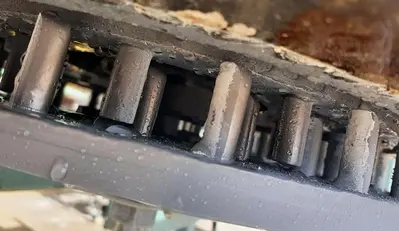

The Simpactor® pin mill is a centrifugal impact mill that reduces low to medium density materials to uniform, fine particle sizes of 50-325mesh.The Simpactor® is used in milling applications where low maintenance and low wear are critical. Typical Simpactor® milling applications include food product processing such as corn fractionation, flours, starch densification, corn slurry, sugar and sweeteners. Semi-abrasive material applications including aluminum sulfate, fertilizer, gypsum, soda ash, deagglomerate powders including tungsten), talc, clay and kaolin

Quantity: 1
Capacity: 4 tons/hr
Width/Dia: 54 Inches
Length: 26 Inches
Height: 52 Inches
Weight: 1,000 Pounds
Motor HP: 10
Material: carbon steel
