## CUP 15 Extractor ##
The CUP15 is a small capacity system that uses alcohol to extract your target compounds from various botanical materials.
- Size 37\" x 25\" x 56\", weight 1095 lbs.
- Batch size 8-14 lbs. plant material, avg run time 10-20 minutes
- Alcohol requirement is 12-15 gallons per run, Working temp range from -40C to +60C
- Liquid/vapor tight vessel with EPDM lid seal; 1 gallon jacket volume with 1/2\" NPT male jacket ports;

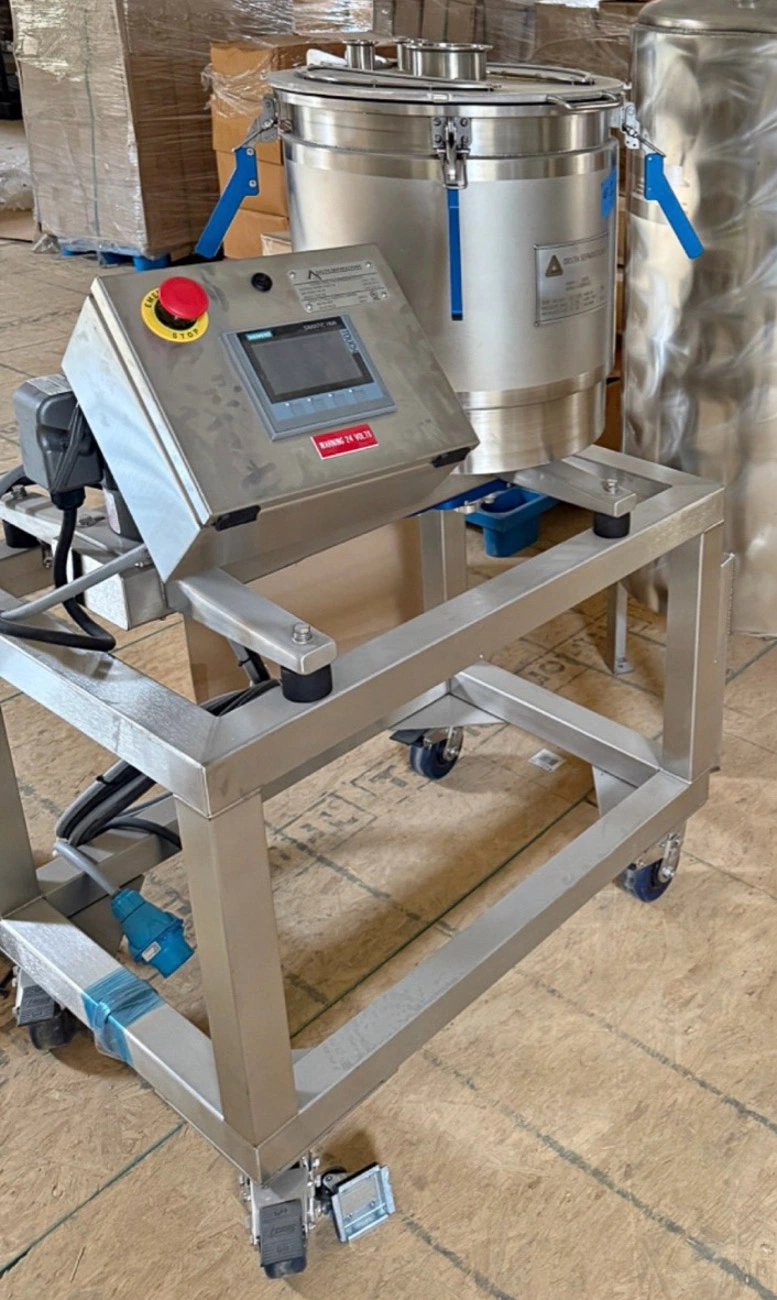

- Industrial Hazardous Location (HazLoc) control panel; Touchscreen HMI; Dual emergency stop
- On stainless steel cart with rollers
The CUP-15 combines closed loop alcohol extraction with centrifugal technology, ensuring consistent and convenient results by a single operator. A touch screen HMI features a menu with various agitation and spin-dry cycles, each of which is programmable to the operator\'s specifications. With a runtime of only 10-20 minutes and a throughput of approximately 300 lbs. per 8-hour work day, this system will efficiently attain your processing goals.
**Applications**
- Botanical Oil Extraction: Hemp, cannabis, essential oils, plant extracts
- Pharmaceutical & Nutraceutical Processing
- Food & Beverage Industry: Flavor and fragrance extraction
- Cosmetic & Skincare Industry: Active ingredient extraction
- Chemical Solvent-Based Extraction Processes
**Compatible Products & Uses**
- Ethanol-Based Cannabis and Hemp Extraction
- CBD and THC Oil Production
- Essential Oil and Botanical Extract Processing
- Industrial-Grade Ethanol Extraction for Herbal and Plant-Based Ingredients
- Solvent Recovery and Purification for High-Purity Extracts
Quantity: 1
Width/Dia: 37 Inches
Length: 25 Inches
Height: 56 Inches
Weight: 1,095 Pounds
