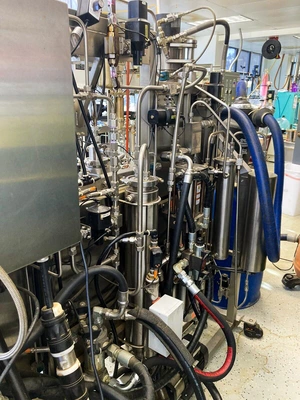

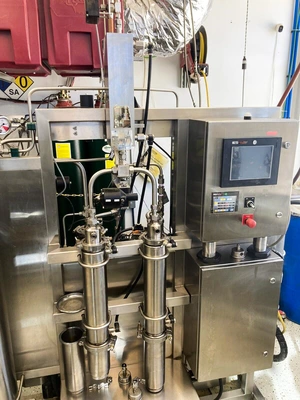

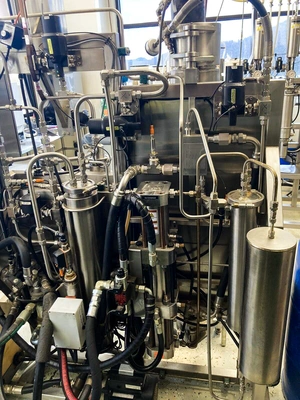

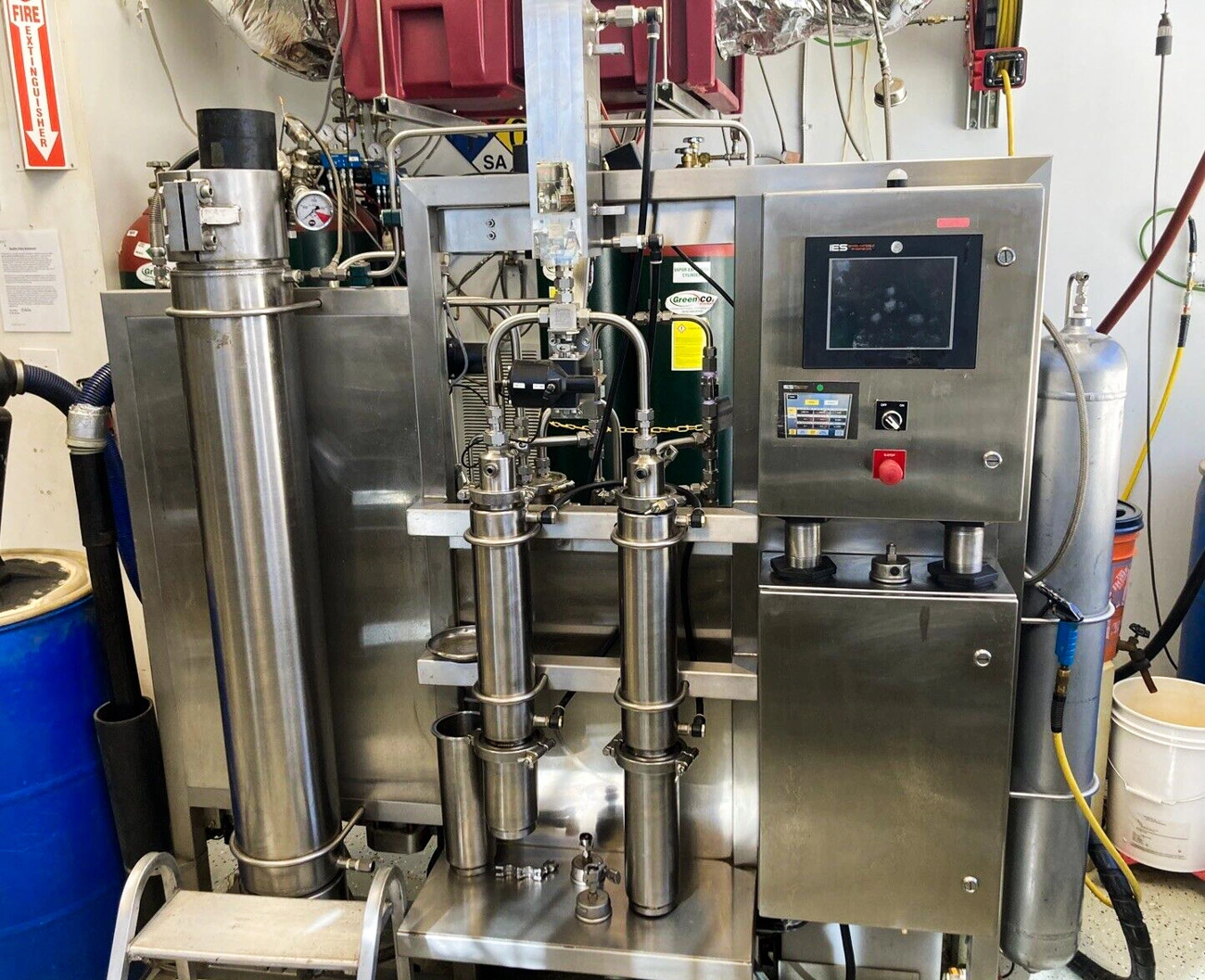

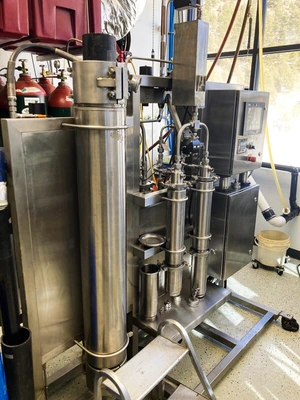

### Supercritical 20L Hydraulic CO2 extractor ###
Closed loop liquid CO2 extractor. Model CDMH.20-2X-2F, mfg by Isolate Extraction Systems
- Material of Construction 304/316 stainless steel
- Manual available on request
- Volume 20 liters per extraction (40 total liters)
- Capacity 4 - 17.6 lbs per extraction vessel
- max flow rate 4 kg/min
- Solvent Range: 850-3500 psi (58.6-241.3 bar), 50°-140°F (10°-60°C)
- Expansion Range: 400-650 psi (27.5-44.8 bar), 65°-140°F (18°- 60°C)

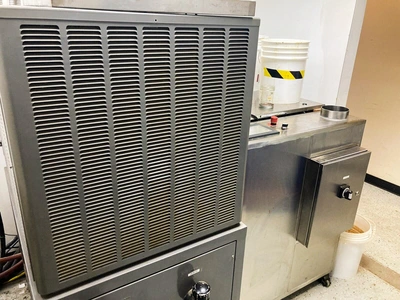

- Includes chiller
**Understanding Supercritical CO2 Extraction**
The CDMH.20-2X-2F is an industrial-grade CO2 extraction machine designed for professionals seeking a safe, efficient, and high-capacity extraction solution.. Traditional extraction methods often rely on harsh solvents like butane or propane, which can leave residual traces in the final product, raising safety concerns. Supercritical CO2 extraction offers a cleaner and safer alternative. Carbon dioxide (CO2) is a naturally occurring gas, readily available and non-toxic. Under specific conditions of high pressure and temperature, CO2 transforms into a supercritical fluid, possessing properties of both a liquid and a gas. This supercritical CO2 acts as a solvent, effectively dissolving and extracting desired bioactive compounds from botanical materials.
Quantity: 1
Width/Dia: 37 Inches
Length: 83.5 Inches
Height: 83 Inches
Weight: 1,600 Pounds
Material: ss316
