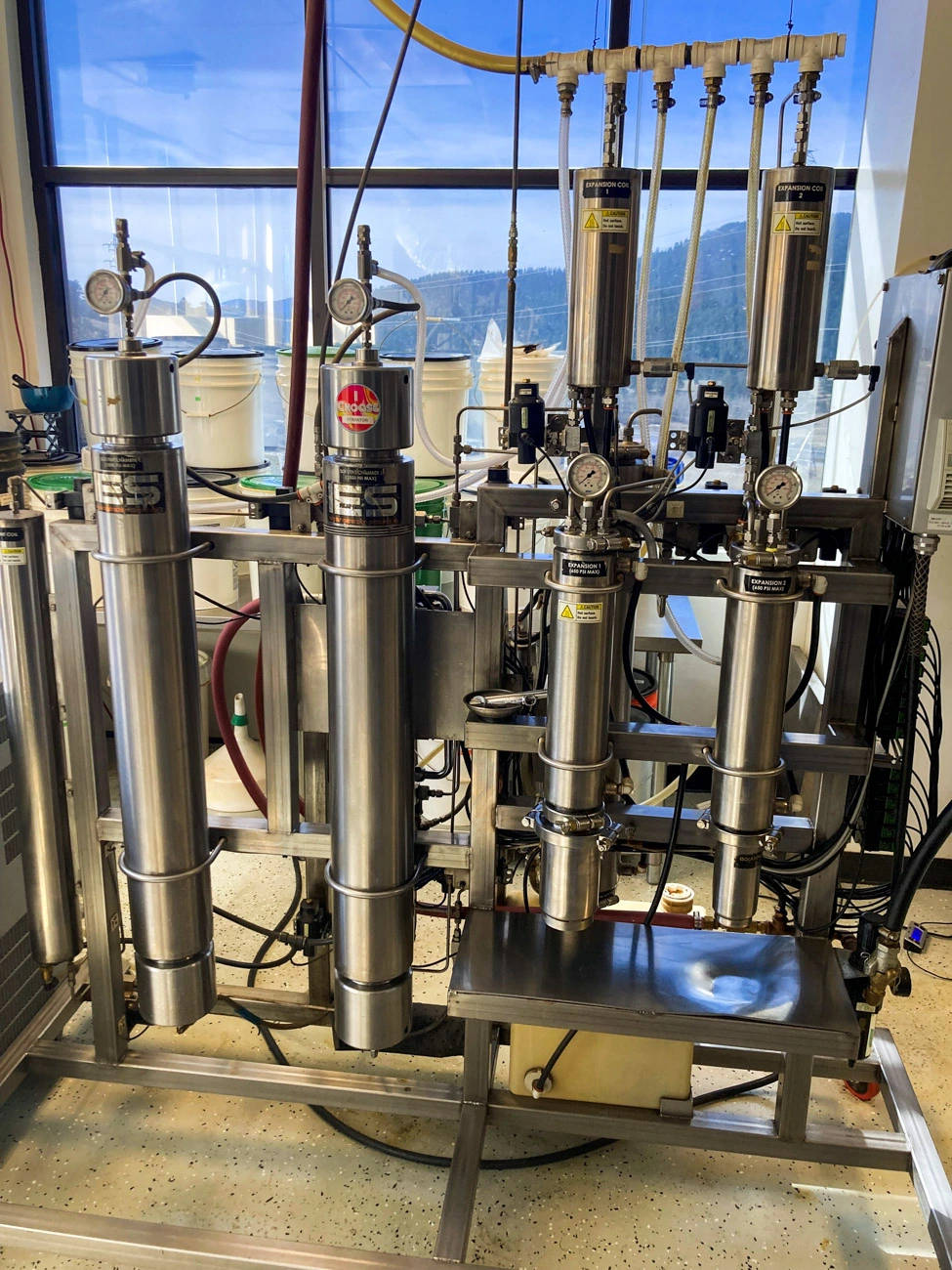

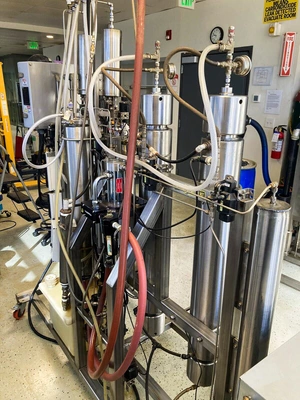

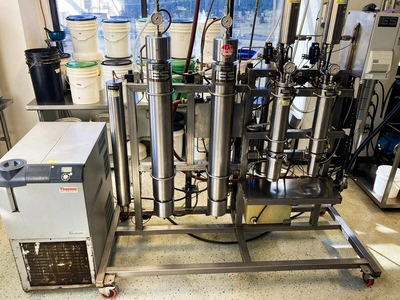

IES supercritical CO2 extraction system 10L - skid mounted, closed loop liquid CO2 Extractor.
Model CD10000H-2x-2f
- Volume: Dual 10L solvent chambers, 10 liters per extraction vessel [20 total liters]
- Capacity: 2 – 8.8 lbs (0.9 – 4 kg) per extraction vessel*
- Max Flow Rate: 2.4 kg/min +/-5% **
- Solvent Range: 850-3500 psi (58.6-241.3 bar), 50°-140°F (10°-60°C)
- Expansion Range: 400-650 psi (27.5-44.8 bar), 65°-140°F (18°- 60°C)
- Materials of Construction 304/316 stainless steel
- Manual available on request

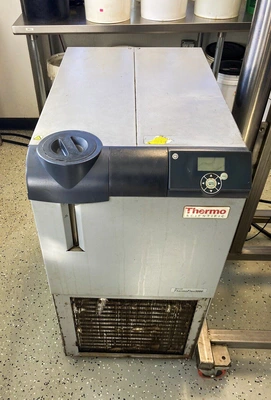

- Chiller by Thermo Scientific ThermoFlex 5000 operated at 2900w at 19 degrees C, rated at 5000w. Circulating chiller
**Understanding Supercritical CO2 Extraction**
Traditional extraction methods often rely on harsh solvents like butane or propane, which can leave residual traces in the final product, raising safety concerns. Supercritical CO2 extraction offers a cleaner and safer alternative. Carbon dioxide (CO2) is a naturally occurring gas, readily available and non-toxic. Under specific conditions of high pressure and temperature, CO2 transforms into a supercritical fluid, possessing properties of both a liquid and a gas. This supercritical CO2 acts as a solvent, effectively dissolving and extracting desired bioactive compounds from botanical materials.
Quantity: 1

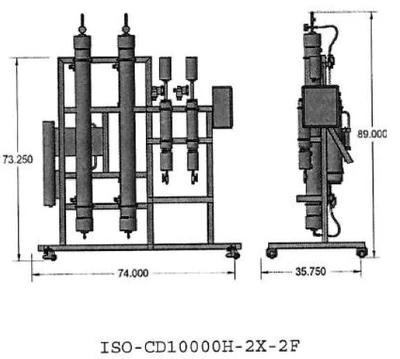

Width/Dia: 35.75 Inches
Length: 74 Inches
Height: 89 Inches
Weight: 1,200 Pounds
Material: ss316
