Condenser Vertical SS 1148sf

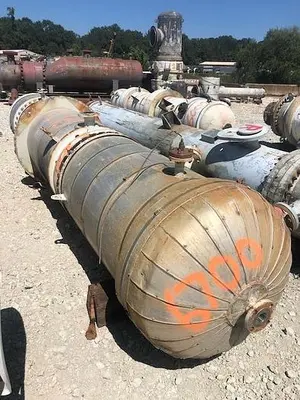

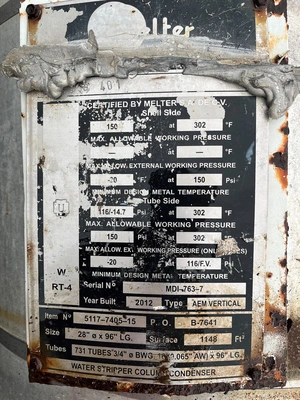

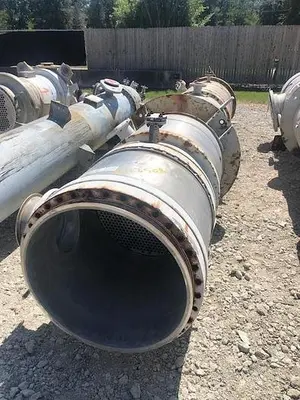

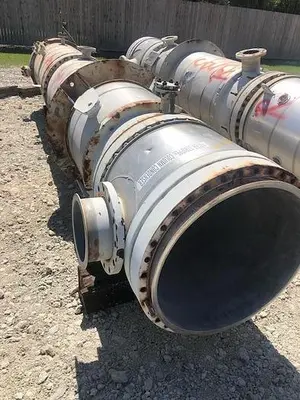

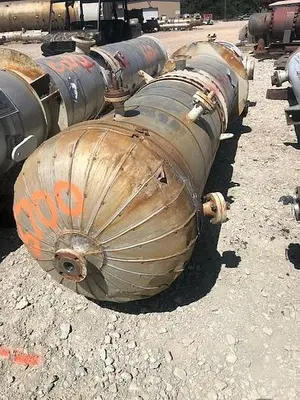

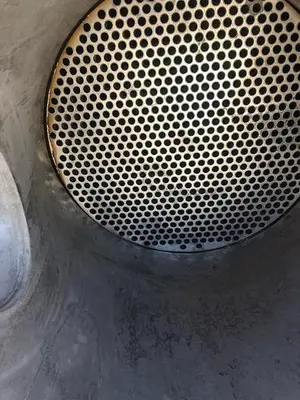

Used condenser manufactured by Melter approximately 1148 sq. ft. surface area. Vertical 316L stainless steel shell and tube heat exchanger. Size 28\" diameter X 7\'-9\" face to face length. Carbon steel shell rated 150 PSI @ 302 degrees F, Has (731) 3/4\" OD 316L stainless steel tubes rated 116/FV@ 302 degrees F. S/N MDI-763-7, ASME NB# 401. Nozzles: (2) 3\" service nozzles. (1) 4\" and (1) 10\" inlet and outlet on the process side. (4) 2\" inlets and outlets for level and (2) 1.5\" nozzles for temperature. Last used as a water stripper column condenser. We will hydrotest upon issuance of purchase order.
Removed - ready to load.

Quantity: 1
Capacity: 1,148 Sq Ft
Width/Dia: 28 Inches
Height: 96 Inches
Pressure: 150 psig
Material: ss316
Heat Exchanger: Shell & Tube
Tema Class: AEM
