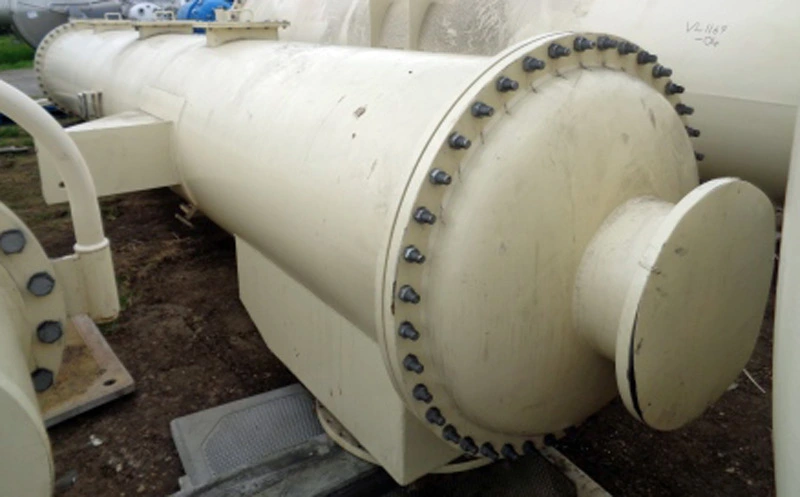

Crown Iron Works condenser, NEW, Old Stock. Surface area 5088 sq ft (473 sq m) with (1080) 3/4 inch (19.05 mm) diameter x 24 ft (7315 mm) long ss304 stainless steel tubes rated 45 psi (3.1 bar) design pressure. Carbon steel shell 40 inch (1016 mm) diameter x 24 ft (7315 mm) long rated +/-1 psi (-0.06/0.06 bar) design pressure. New 2004. Was used as Desolventizer Toaster condenser.
Quantity: 1
Capacity: 5,088 Sq Ft
Width/Dia: 40 Inches
Length: 24 Feet
Size: 40" dia x 24 ft
Material: carbon steel
Heat Exchanger: Condenser
