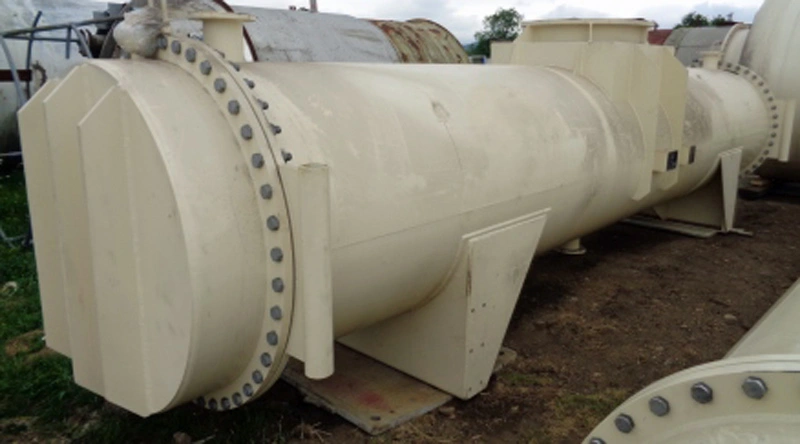

Unused Crown Iron Works 9498 sqft (882 sqmt) 304 ss horizontal evaporator condenser. Has (2016) 3/4 inch (19.05 mm) diameter x 24 ft (7315 mm) long 304 stainless steel tubes rated 55 psi (3.70 bar) design pressure at 100 deg.f (38 deg.c). Has 56 inch (1422 mm) diameter x 24 ft (7315 mm) long shell rated +/-15 psi (-1.03/1.03 bar) design pressure at 212 deg.f (100 deg.c). 4 pass tube side, 2 pass shell side. New 2004. Vapor inlet 36:. Shell 56\" OD x 24 ft.Overall size 6 ft top to bottom x 27ft-2\" long, empty weight approx 32,970 pounds
Quantity: 1
Capacity: 9,498 Sq Ft
Weight: 32,970 Pounds
Size: 56" dia x 24 ft
Material: ss304
Heat Exchanger: Condenser
